Brand: SUNWORTH
Product Origin: China
Power Range: 90W-125W
Solar Cell: Monocrystalline
Certificate: CE/TUV/CB/IEC/RoHS
Warranty: 25 years

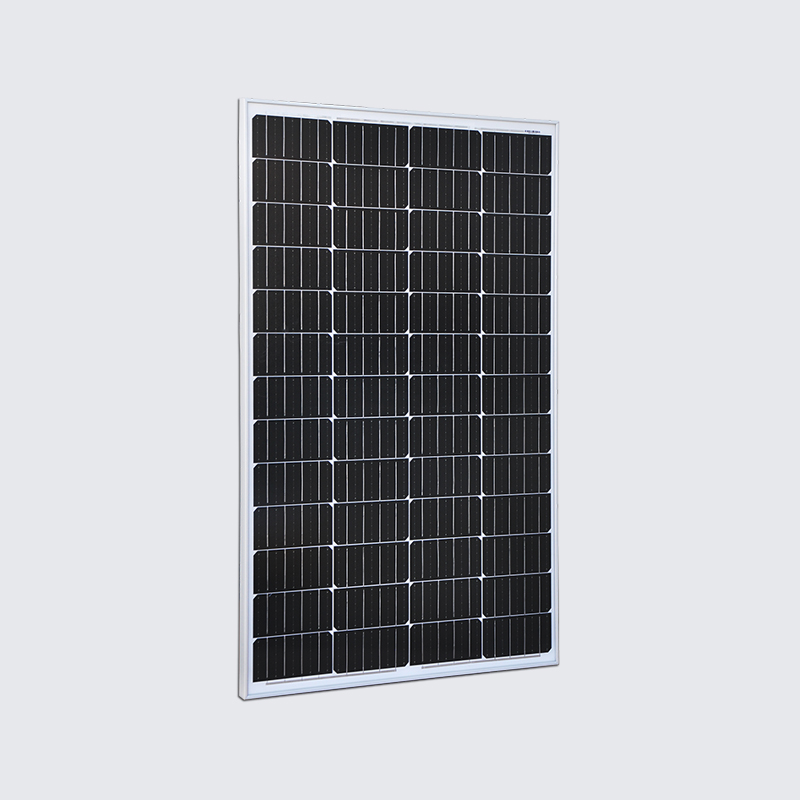

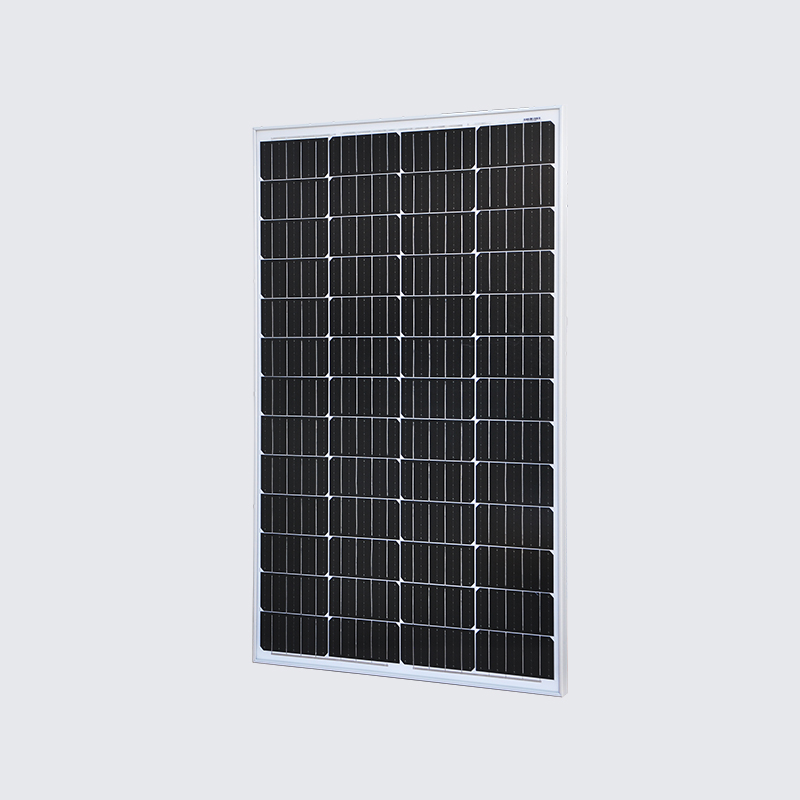

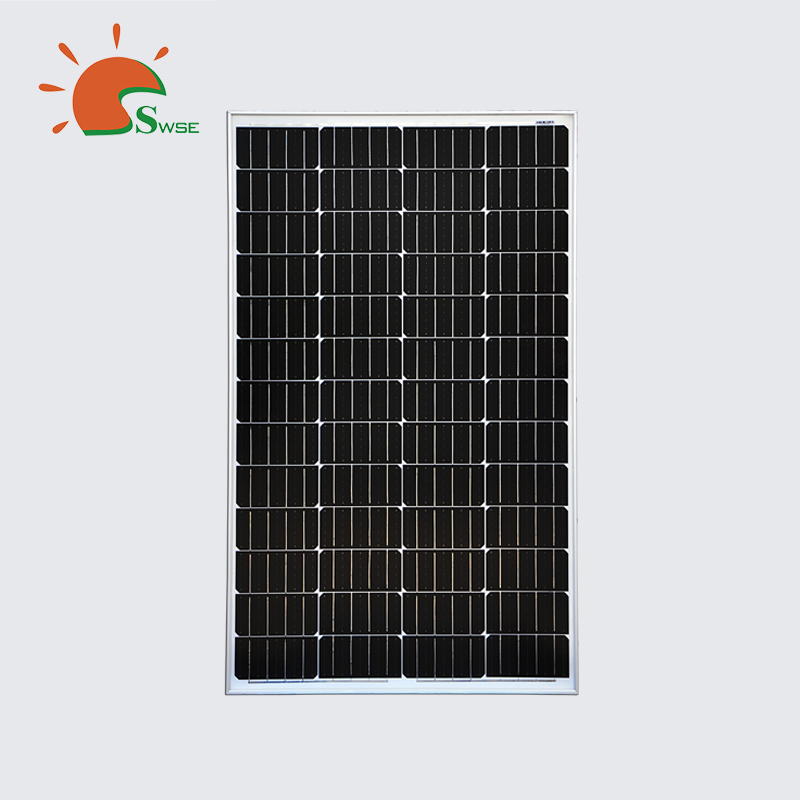

100W Monocrystalline Solar Panel
Description
Descriptions:
Customers can select the power of the panel freely according to the application, space, and where the customer wants to install.
Advantages of 90~125W China Manufacture Monocrystalline Solar PV Module:
- Professional solar PV module manufacturer
- Fully automated PV module production technology
- Strong Low-light performance
- Passed variety of harsh environmental tests, like salt spray, ammonia and sand storm corrosion tests
- Excellent anti-PID performance
| Electrical Parameters | ||||
| Model No. | SW090M-36 | SW100M-36 | SW110M-36 | SW125M-36 |
| Max Power | 90W | 100W | 110W | 125W |
| Max Voltage | 19.57V | 18.50V | 19.00V | 19.90V |
| Max Current | 4.60A | 5.41A | 5.79A | 6.29A |
| Open-circuit Voltage | 24.11V | 22.54V | 23.17V | 24.35V |
| Short-circuit Current | 4.87A | 5.74A | 6.14A | 6.60A |
| Module Efficiency | 17.69% | 14.96% | 16.46% | 18.70% |
| Operating Temperature | -40℃~+85℃ | |||
| Max System Voltage | 300Vdc | 600Vdc | ||
| Max Series Fuse Rating | 10A | 10A | 10A | 10A |
| Power Tolerance | ±3% | |||
| *STC condition：1000 W/m² | 1.5AM and 25℃ cell temperature | |||
| Temperature parameters | ||||
| NMOT | 46℃±2℃ | |||
| Temperature Co-efficient of Pmax | -0.398%/℃ | |||
| Temperature Co-efficient of Voc | -0.340%/℃ | |||
| Temperature Co-efficient of Isc | 0.0576%/℃ | |||
| Mechanical Parameters | ||||
| Cell size | 156.75*78.38mm | 156.75*104.5mm | 156.75*104.5mm | 156.75*104.5mm |
| Cell amounts | 36(4*9) | 36(4*9) | 36(4*9) | 36(4*9) |
| Weight | 5.5kg | 7.2kg | 7.2kg | 7.2kg |
| Module Dimensions | 665*765*30mm | 665*1005*30mm | 665*1005*30mm | 665*1005*30mm |
| Front Cover | 3.2mm tempered glass | |||
| Frame Material | Anodized aluminium alloy | |||

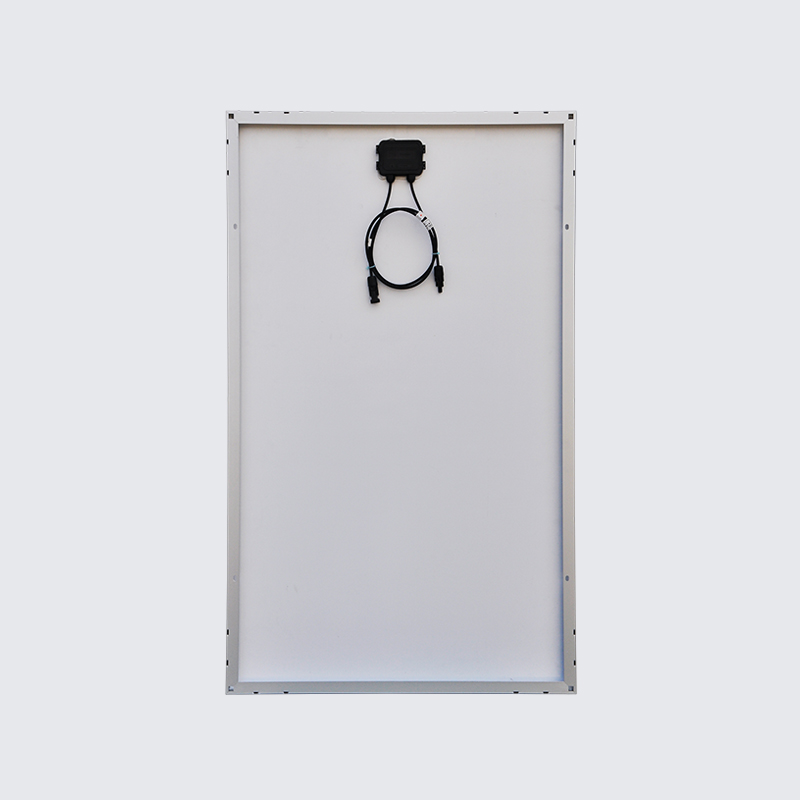

| Junction Box | IP65 rated | |||
| Output Cables | 2.5mm2,Length 700mm+MC4 | |||
Q1:Do you provide after-sales service?
A:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.
Q2:What solar solutions can you provide?
A:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,Agriculture-complementary Solar Power Station.
Q3:What is the lead time?
A:It will take about 5-20 days for production depending on the quantity.
Q4:How long is the warranty of your products?
A:5-year Warranty for Materials and Processing 25-year Warranty for Extra Linear Power Output.
Q5:Can I have sample before formal order?
A:Of course.
Q6:OEM is available?
A:Acceptable OEM Service
