Brand: SUNWORTH
Product Origin: China
Power Range: 200W-210W
Solar Cell: Polycrystalline
Certificate: CE/TUV/CB/IEC/RoHS
Warranty: 25 years

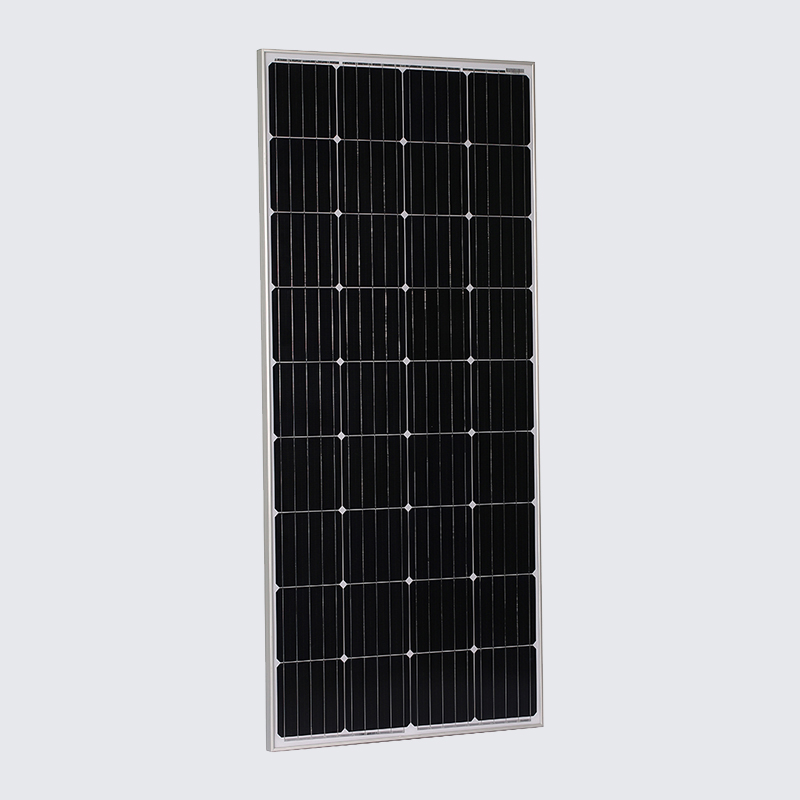

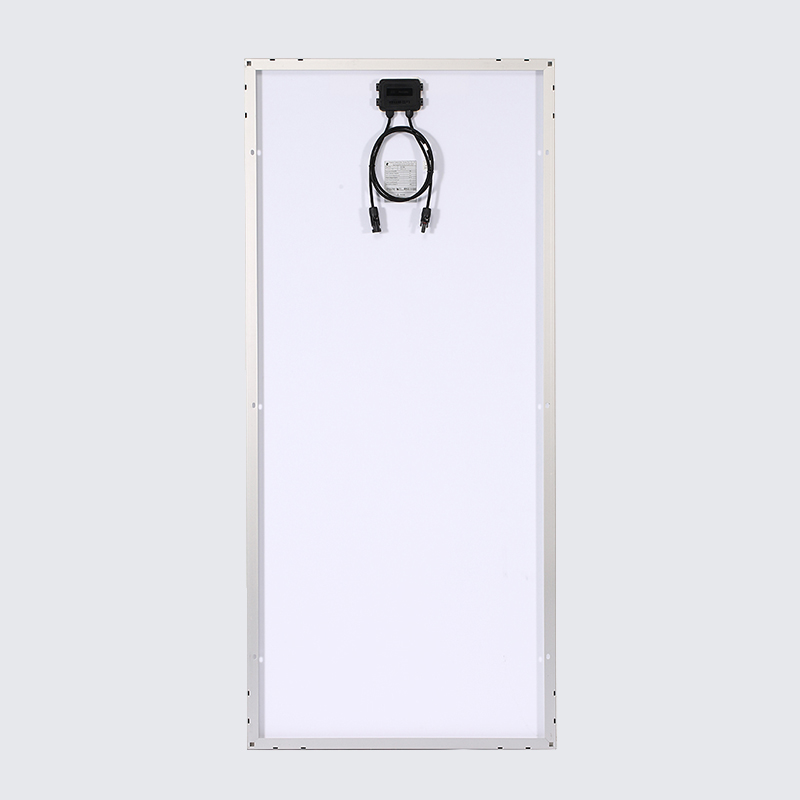

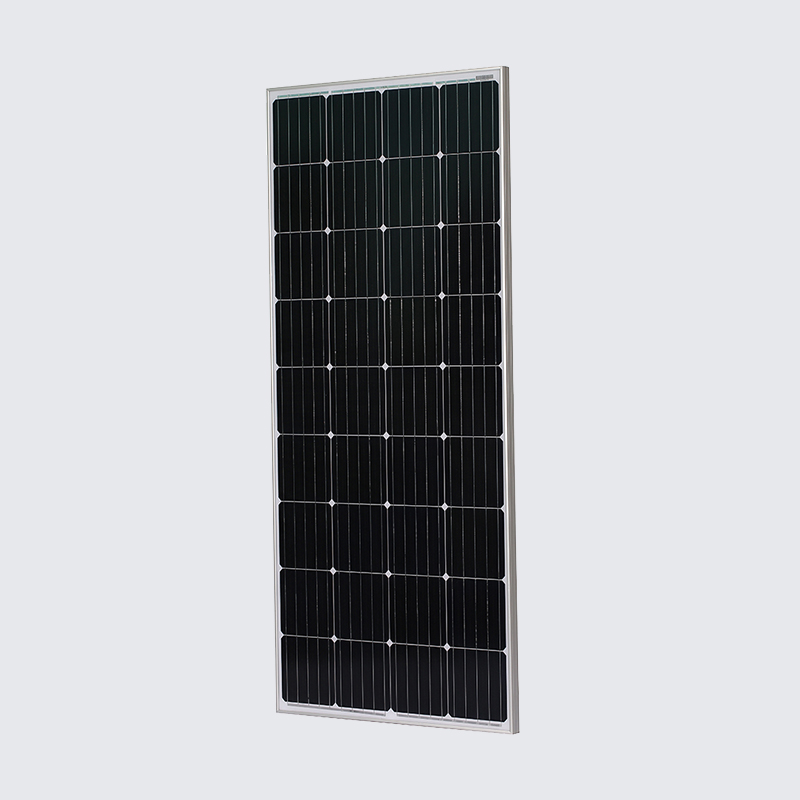

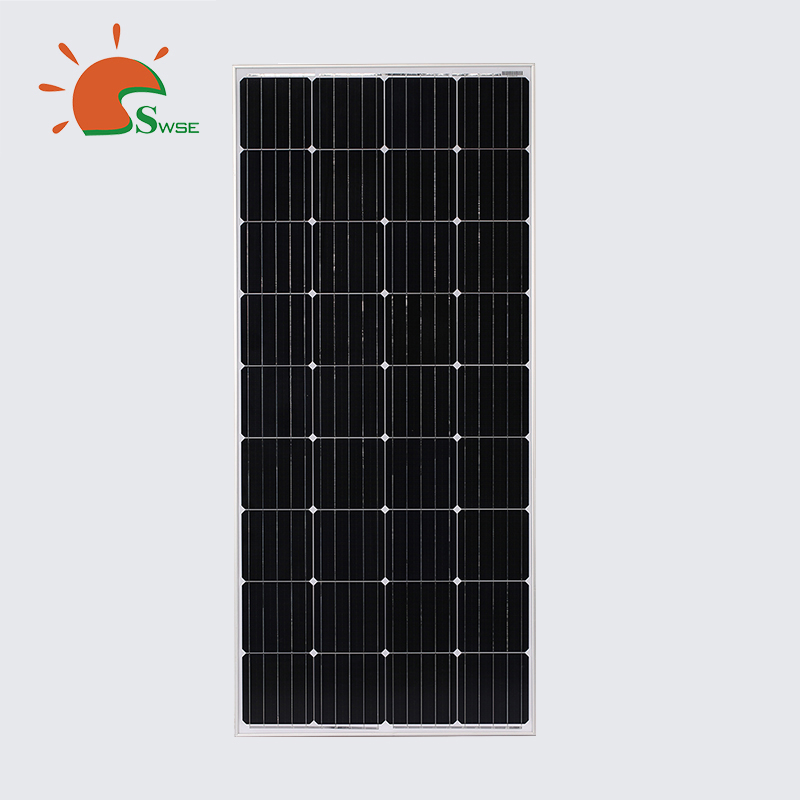

250W Monocrystalline Solar Panel
Description
Descriptions:
200W~250W renewable energy mono solar power PV panel, is usually used in a variety of customized energy storage systems and PV power plants. Improving the local power environment while avoiding insufficient power during peak periods.
Advantages of 200~250W Renewable Energy Mono Solar Power PV Panel:
- 12 years solar PV products manufacture experience
- Fully automated production line for PV module
- Stable and reliable delivery time
- Passed a variety of harsh environmental tests, like salt spray, ammonia and sand storm corrosion tests
- 80% power output warranty for 25 years
| Electrical Parameters | |||
| Model No. | SW200M-72 | SW230M-72 | SW250M-72 |
| Max Power | 200W | 230W | 250W |
| Max Voltage | 36.36V | 45.77V | 38.40V |
| Max Current | 5.51A | 6.37A | 6.52A |
| Open-circuit Voltage | 44.84V | 37.65V | 47.15V |
| Short-circuit Current | 5.73A | 6.11A | 6.90A |
| Module Efficiency | 15.16% | 17.43% | 18.95% |
| Operating Temperature | -40℃~+85℃ | ||
| Max System Voltage | 1000Vdc | ||
| Max Series Fuse Rating | 15A | ||
| Power Tolerance | ±3% | ||
| *STC condition：1000 W/m² | 1.5AM and 25℃ cell temperature | ||
| Temperature parameters | |||
| NMOT | 46℃±2℃ | ||
| Temperature Co-efficient of Pmax | -0.398%/℃ | ||
| Temperature Co-efficient of Voc | -0.340%/℃ | ||
| Temperature Co-efficient of Isc | 0.0576%/℃ | ||
| Mechanical Parameters | |||
| Cell size | 156.75*104.5mm | 156.75*104.5mm | 156.75*104.5mm |
| Cell amounts | 72(6*12) | 72(6*12) | 72(6*12) |
| Module Dimension | 992*1330*30mm | 992*1330*30mm | 992*1330*30mm |
| Weight | 13.9kg | 13.9kg | 13.9kg |
| Front Cover | 3.2mm tempered glass | ||
| Frame Material | Anodized aluminium alloy | ||
| Junction Box | IP65 rated | ||
| Output Cables | 4mm2,Length 900mm+MC4 | ||
Q1:Do you provide after-sales service?
A:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.
Q2:What solar solutions can you provide?
A:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,Agriculture-complementary Solar Power Station.
Q3:What is the lead time?
A:It will take about 5-20 days for production depending on the quantity.
Q4:How long is the warranty of your products?
A:5-year Warranty for Materials and Processing 25-year Warranty for Extra Linear Power Output.
Q5:Can I have sample before formal order?
A:Of course.
Q6:OEM is available?
A:Acceptable OEM Service
