Brand: SUNWORTH
Product Origin: China
Power Range: 250W-270W
Solar Cell: Polycrystalline
Certificate: CE/TUV/CB/IEC/RoHS
Warranty: 25 years

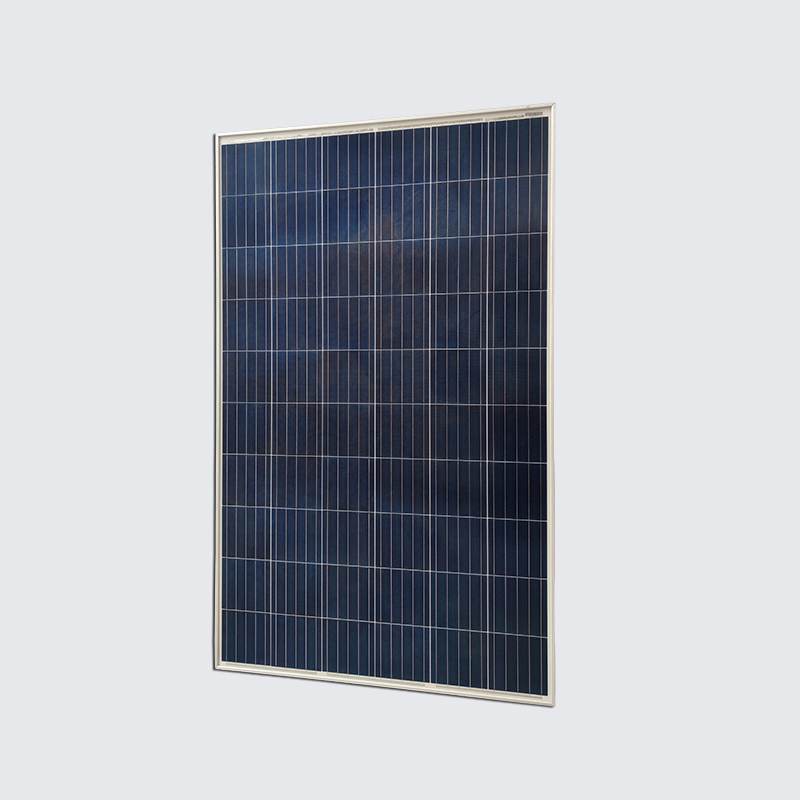

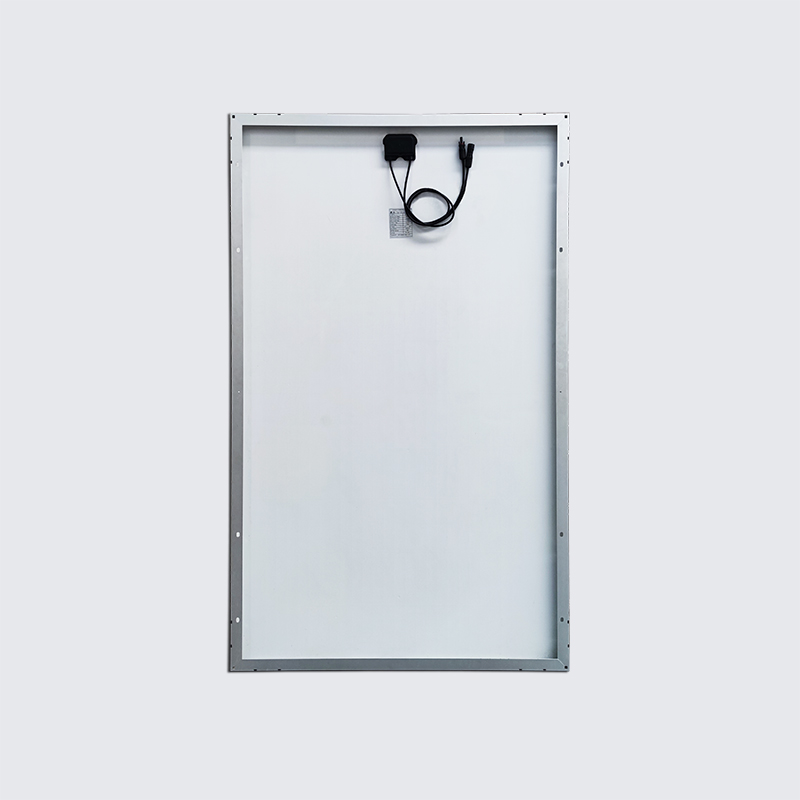

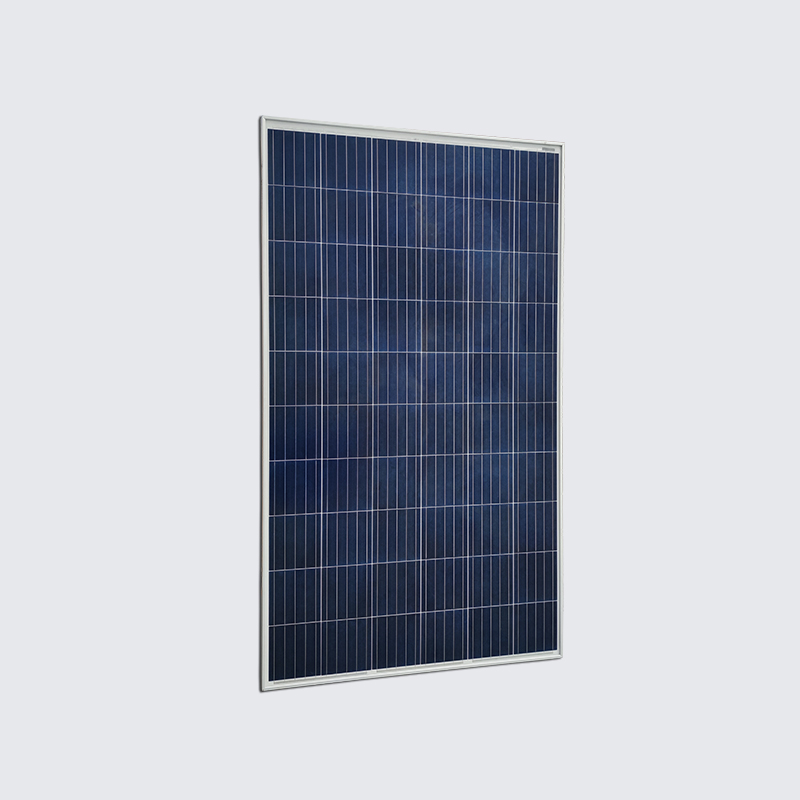

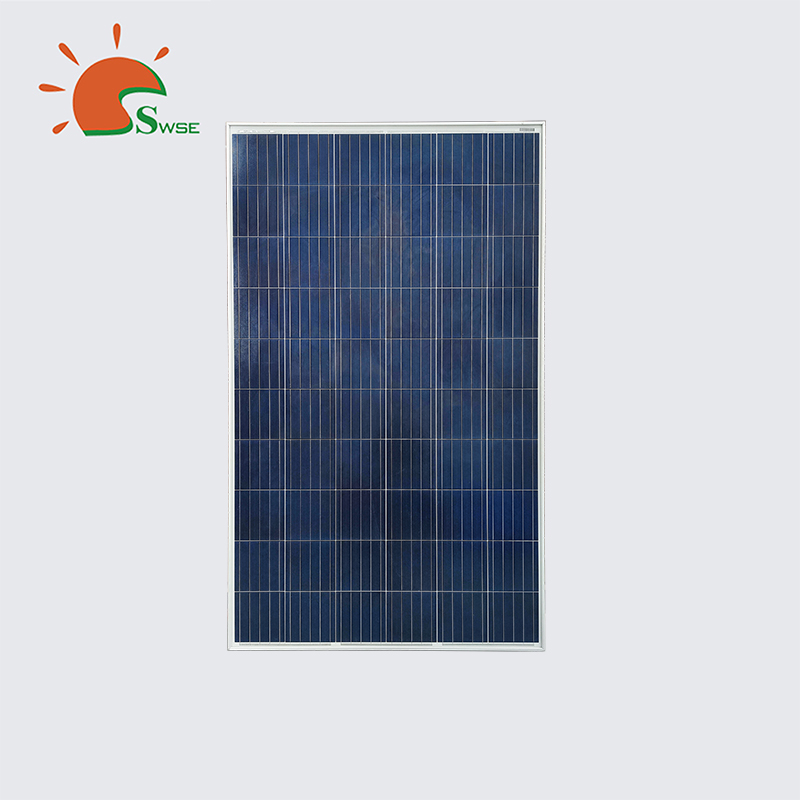

260W Polycrystalline Solar Panel
Description
Descriptions:
250W-270W poly solar module, service life is 25 years. Few maintenance needed during usage. It can generate power and meanwhile be roof of shed, be decoration of buildings, etc.
Advantages:
- Experienced and quality reliable photovoltaic module manufacturer.
- High transmittance tempered glass
- 10 years product warranty, 25 years linear power warranty
| Electrical Parameters | |||
| Model No. | SW250P-60 | SW260P-60 | SW270P-60 |
| Max Power | 250W | 260W | 270W |
| Max Voltage | 30.37V | 30.59V | 31.71V |
| Max Current | 8.24A | 8.51A | 8.52A |
| Open-circuit Voltage | 37.68V | 37.96V | 38.80V |
| Short-circuit Current | 8.61A | 8.88A | 9.09A |
| Module Efficiency | 15.37% | 15.98% | 16.60% |
| Operating Temperature | -40℃~+85℃ | ||
| Max System Voltage | 1000Vdc | ||
| Max Series Fuse Rating | 15A | ||
| Power Tolerance | 0~+3% | ||
| *STC condition：1000 W/m² | 1.5AM and 25℃ cell temperature | ||
| Temperature parameters | |||
| NMOT | 46℃±2℃ | ||
| Temperature Co-efficient of Pmax | -0.398%/℃ | ||
| Temperature Co-efficient of Voc | -0.340%/℃ | ||
| Temperature Co-efficient of Isc | 0.0576%/℃ | ||
| Mechanical Parameters | |||
| Cell size | 157*157mm | ||
| Cell amounts | 60(6*10) | ||
| Module Dimensions | 992*1640*35mm | ||
| Weight | 17.6kg | ||
| Front Cover | 3.2mm tempered glass | ||
| Frame Material | Anodized aluminium alloy | ||
| Junction Box | IP67 rated | ||
| Output Cables | 4mm2,Length 900mm+MC4 | ||
Q1:Do you provide after-sales service?
A:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.
Q2:What solar solutions can you provide?
A:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,Agriculture-complementary Solar Power Station.
Q3:What is the lead time?
A:It will take about 5-20 days for production depending on the quantity.
Q4:How long is the warranty of your products?
A:5-year Warranty for Materials and Processing 25-year Warranty for Extra Linear Power Output.
Q5:Can I have sample before formal order?
A:Of course.
Q6:OEM is available?
A:Acceptable OEM Service
