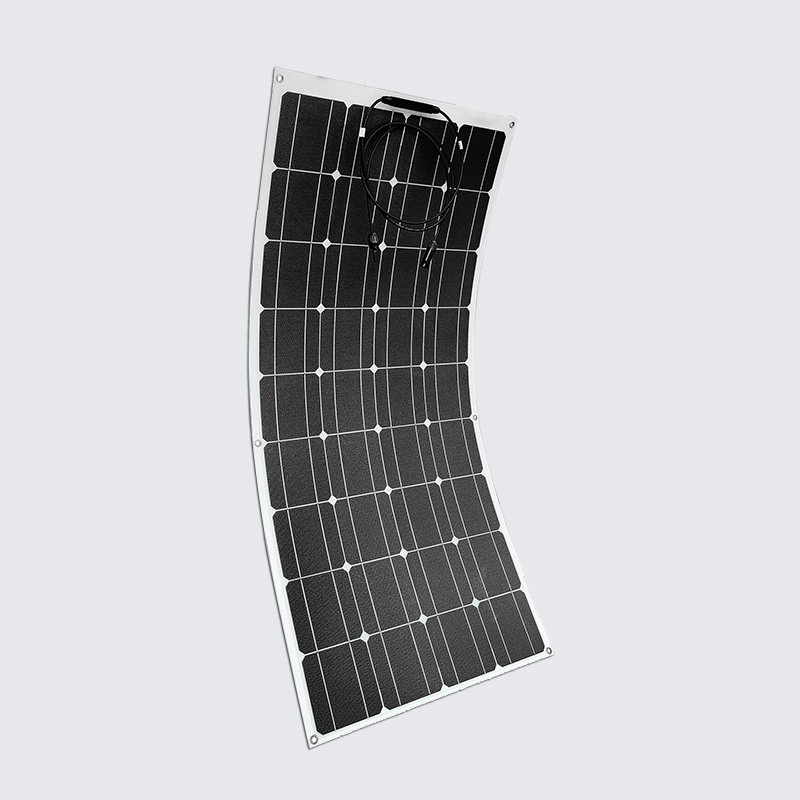

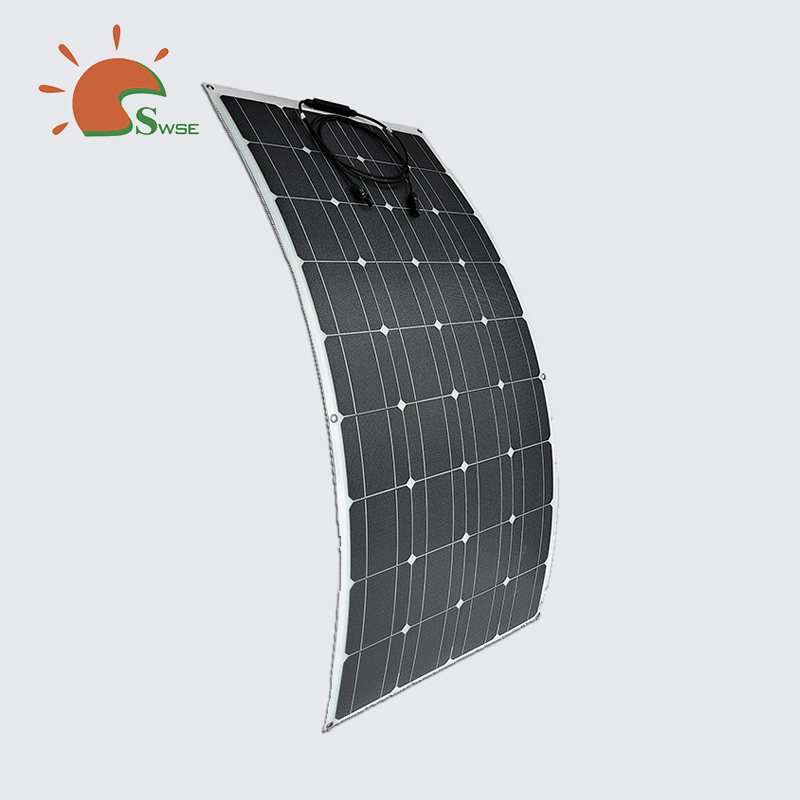

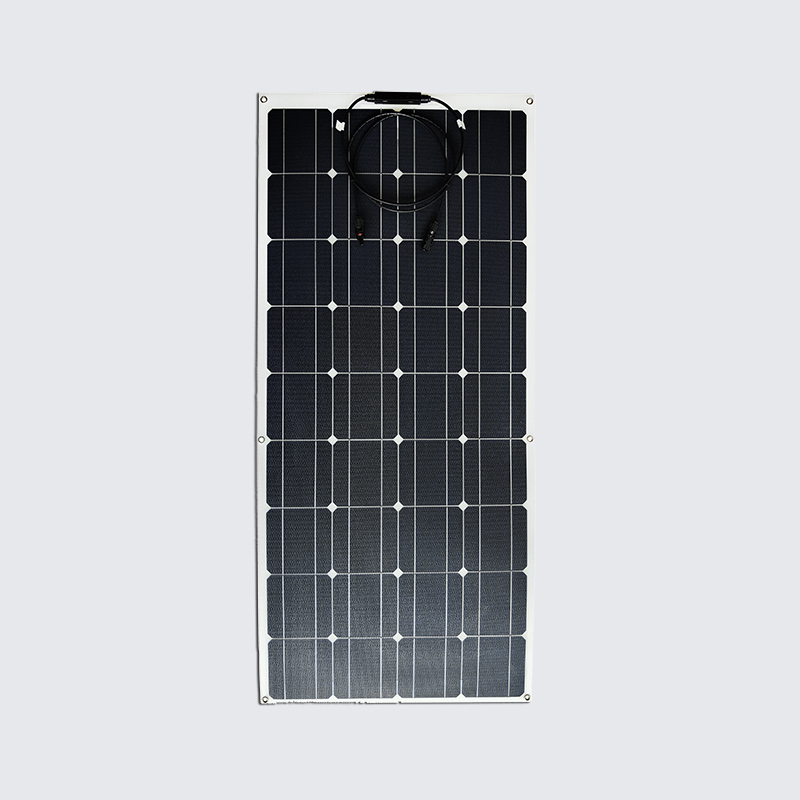

Flexible Solar Panel

Flexible Solar Panel


Product Origin: China

Power Range: 50W-200W

Material: monocrystalline silicon+PVC+ETFE

Certificate: TuV / CB /CE / IEC



Key Features of the Flexible Solar Panel

  1. Lightweight, 80% lighter than double glass solar modules, transportation and installation costs are greatly reduced
  2. Low-temperature coefficient, less affected by temperature, stable conversion efficiency.

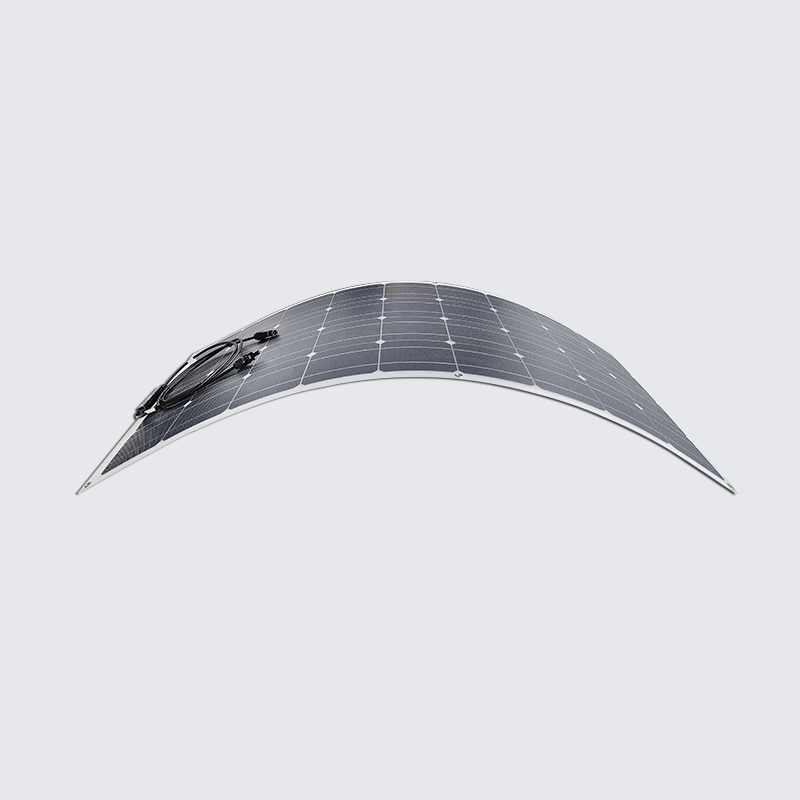

  3. With good flexibility, further meet all kinds of installation plane may exist radian, corner, etc
  4. wide range of applications, can be widely used in building surfaces, cars and mobile power stations and other places


General Application of Flexible Solar Panel

  1. Ultra-lightweight, ultra-thin and flexible, allowing for a wide range of applications, for example, RV, boat, cabin, tent, car, trucks, trailers or any other irregular surfaces.
  2. Supporting vehicles: solar cars/electric cars, battery charging equipment, automobile air conditioning, ventilation fans, car refrigerator, etc.;
  3. Can be taken to outdoor camping, to power all necessary electrical appliances.
  4. Can also be installed on irregular rooftops, as a solar power station, to supply power for household or commercial use.
Electrical Characteristics
Model No. SW50M SW100M SW200M
Maximum Power (Pmax) 50W 100W 200W
Max-power Voltage (Vmp) 19.6V 19.6V 19.6V
Max-power Current (Imp) 2.55A 5.1A 10.2A
Open-circuit Voltage (Voc) 23.52V 23.52V 23.52V
Short-circuit Current (Isc) 2.7A 5.4A 10.81A
Module Efficiency 0.1567 16.83% 17.45%
Operating Temperature -40℃~+85℃
Maximum System Voltage 1000Vdc
Maximum Series Fuse Rating 10A
Power Tolerance ±3%
*STC condition:1000 W/m²,1.5AM and 25℃ cell temperature.
Temperature Characteristics
NMOT 46℃±2℃
Temperature Co-efficient of Pmax -0.39%/℃
Temperature Coefficient of Voc -0.30%/℃
Temperature Coefficient of Isc 0.06%/℃
Mechanical Characteristics
Mono Power 50W 100W 200W
Cell Type 166*166 mm 166*166 mm 166*166 mm
Cell Arrangement 36(3*12) 36(4*9) 36(4*9)
Dimensions 580*550*3mm 825*725*3mm 1580*725*3mm
Weight 2.5kg 3.5kg 6.5kg
Front Cover 0.3mm,TPT
Junction Box IP65 rated
Output Cables 2.5mm2,Length 700mm+MC4 2.5mm2,Length 700mm+MC4 4mm2,Length 700mm+MC4

Q1:Do you provide after-sales service?
A:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.

Q2:What solar solutions can you provide?
A:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,Agriculture-complementary Solar Power Station.

Q3:What is the lead time?
A:It will take about 5-20 days for production depending on the quantity.

Q4:How long is the warranty of your products?
A:5-year Warranty for Materials and Processing 25-year Warranty for Extra Linear Power Output.

Q5:Can I have sample before formal order?
A:Of course.

Q6:OEM is available?
A:Acceptable OEM Service
