SPS with Lead-acid Battery Series 1KW~5KW


Product Origin: China

Product Name: Off-grid Solar Power System

Power Sourse: Solar Panel/AC Adaptor

Battery Type: Lead-acid

Controller Type: MPPT

Inverter Type: Pure Sine Wave

Output: USB,AC

Service: ODM/OEM

Certificate: CE

Warranty: 2 years

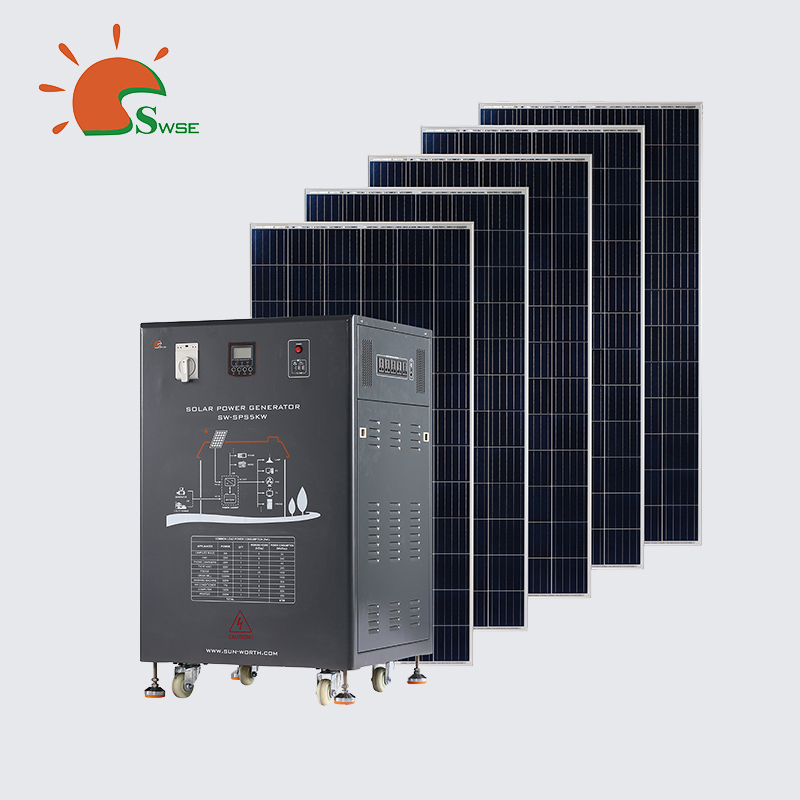

The off-grid solar power system consist of high efficiency solar panels, brackets and an integrated cabinet that contains lead-acid battery, controller and inverter. The system equipped multiple output ports to meet various power needs. The whole system was installed and tested before delivery and ensure the reliable performance. It’s absolutely an economical and secure energy solution.


Advantage of SUNWORTH Solar Power System with Lead-acid Battery Series 1KW~5KW

  • Clear working status indication
  • Reliable performance, simple operation and maintenance.
  • Integrated power machine, easy to carry and install, reducing field installation cost and avoid potential risks caused by on-site installation errors.
  • Comprehensive protection function: surge, short circuit,over temperature, overload etc.
Technical Data
Solar Panel Power 2x320Wp 4x320Wp 6x320Wp 8x320Wp 10x320Wp
Lead-acid /GEL Battery 2.4KWh 4.32KWh 7.2KWh 8.64KWh 9.6KWh
Rated Power 1KVA/1KW 2KVA/2KW 3KVA/3KW 4KVA/4KW 5KVA/5KW
Surge Rating 2KVA 4KVA 6KVA 8KVA 10KVA
Max. Solar Charge  MPPT 40A MPPT 60A MPPT 60A MPPT 80A MPPT 80A
Max.AC Charge 20A 30A 30A 60A 60A
Input Voltage AC 220V/230V 50Hz
Output Voltage AC 220V/230V 50Hz ,1x Flash Charge USB ,2x5V USB(2.1A)
Protection Surge, Reverse polarity, Overload, Short circuit ,etc.
Operating Temperature Discharge: -20℃ ~50℃,Charge: 0℃~50℃
IP Rating IP22
Power Box Size 30x50x60cm 35*70*75cm 60*50*95cm 65*62*95cm 65*62*95cm
Weight 150Kgs 240Kgs 360Kgs 450Kgs 530Kgs


Q1: What devices can the system power?
A: It is recommended that the load power not exceed 75% of the rated
    power of the machine, please refer to the specifications for details.

Q2: Do you make customized products?
A: We warmly welcome OEM/ODM orders.

Q3: What is the minimum number of order for this product?
A: Normally MOQ 50 pcs.

Q4: Can I get a sample before order?
A: After price confirmation, you can require for samples to check our product’s quality.

Q5: What is your term of delivery?
A: We accept FOB Shenzhen or CIF. It’s up to you.
