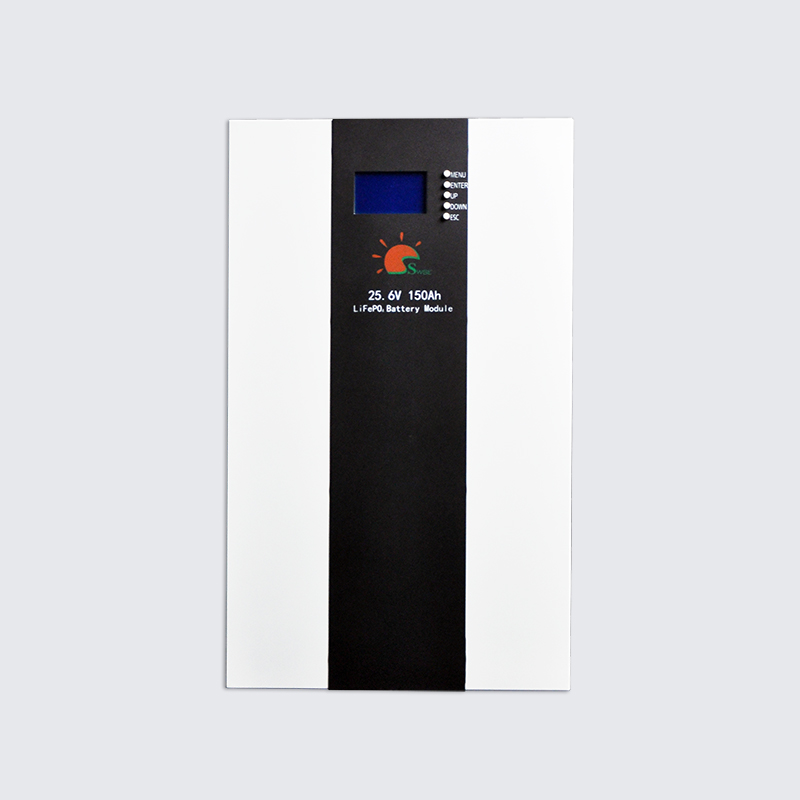

Powerwall Lithium Battery 25.6V150Ah

Home|Lithium Battery|Powerwall Lithium Battery|Powerwall Lithium Battery 25.6V150Ah

Powerwall Lithium Battery 25.6V150Ah


Product Origin: China

Module No: SW-W256150

Capacity: 3840Wh

Case Material: metal

Dimensions: 540*330*140mm

BMS: 8S100A

Certificate: CE



  • Light weight high energy density.
  • Long lifespan and less capacity attenuation.
  • Modular design enables flexible capacity.
  • Build-in BMS to ensure superior safety.


Sunworth Powerwall adopts modular design which makes parallel connection available to meet different power demands.High performance Grade A battery cells support 5000 times cycles and less capacity decrease during its service life, and ensure high quality, reliability and security. Built in BMS system can provide all-round circuit protection, including over-temperature alarm protection, over-charge and over-discharge protection, short-circuit protection. When connecting to the computer,users can monitor the battery status at any time. Configure RS485 and RS232 communication interfaces, enables the battery module to be perfectly compatible with mainstream inverters. Equipped LDC screen can accurately indicate battery status such as voltage, temperature, state of charge, charging and discharge current, etc.

With the characteristics of simple installation, easy operation, clear indication and convenient maintenance, Sunworth Powerwall lithium battery would definitely be your best choice.


 Nodel No. SW-W256150
 Electrical Characteristics Nominal Voltage 25.6V
Nominal Capacity 100Ah  (C5 ,25℃)
Energy 3840Wh
Cycle Life >2000 cycles@0.2C 100%DOD
Months Self Discharge <3%
Standard Charge Standard charge current 30A
Maximum charge current 100A
Standard Discharge Standard discharge current 30A
Maximum discharge current 100A
Discharge cut-off voltage 20V
Mechanical Dimensions (in./mm.) 540*330*140mm
Weight (lbs./kg.) ≦40Kg

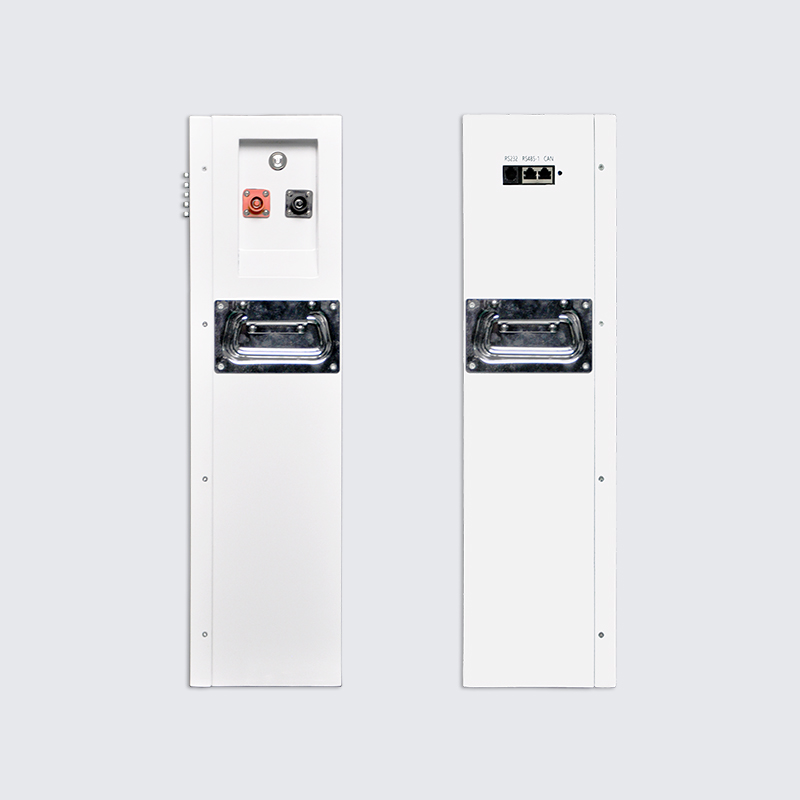

Protocol (optional) RS485/RS232/CAN
Operating Temperature Charge Temperature 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature -20 ℃ to 60 ℃ (-4Fto 140F) @60±25% Relative Humidity


Q1: How is the warranty of the product?
A: We provide 3 years warranty for the product.

Q2: Do you provide after-sales services?
A: We provide technical consulting services. If you have any technical problems during the use of the product,
    please feel free to contact us, and we will provide you with solutions within 24 hours.

Q3: Can I get test sample?
A: Sample will be charged a cost, but the cost will be refunded after the bulk order.

Q4: Do you have any MOQ limit ?
A: MOQ 100. The larger the order quantity, the better the price. No matter how much you order, we will provide
    you with the most favorable price.

Q5: Can I order customized products?
A: Please let us know your requirements firstly and we will customize the products according to your requirements
    and confirm the final design with you. We warmly welcome OEM/ODM for bulk order.

Q6: Does the package contain accessories?
A: We will configure accessories for you according to your requirements.
