Brand: SUNWORTH
Product Origin: China
Power Range: 400W-415W
Solar Cell: Monocrystalline
Certificate: CE/TUV/CB
Warranty: 12-year product warranty.
25-year linear power output warranty.

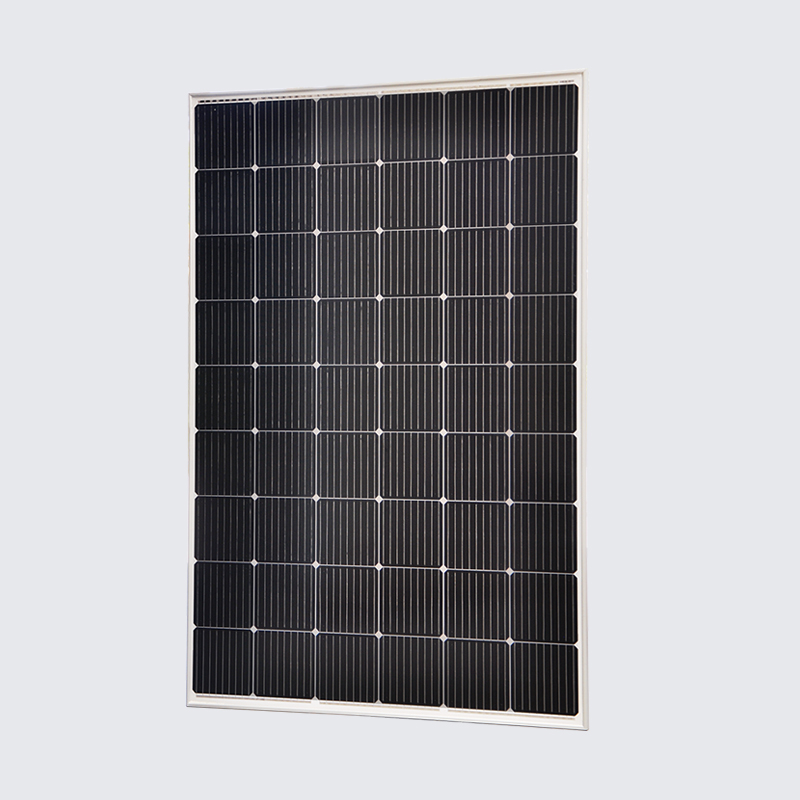

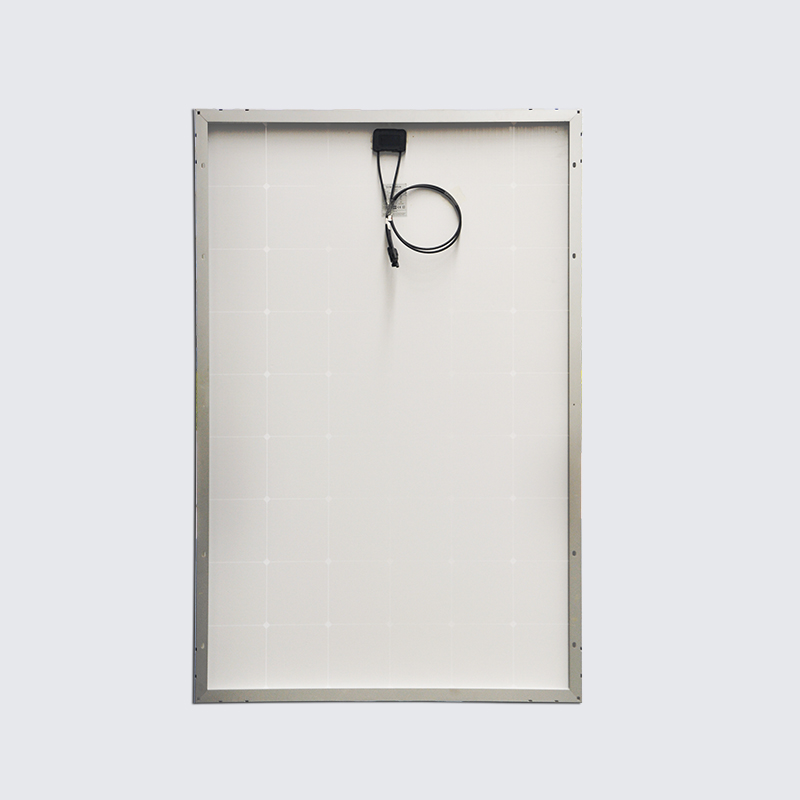

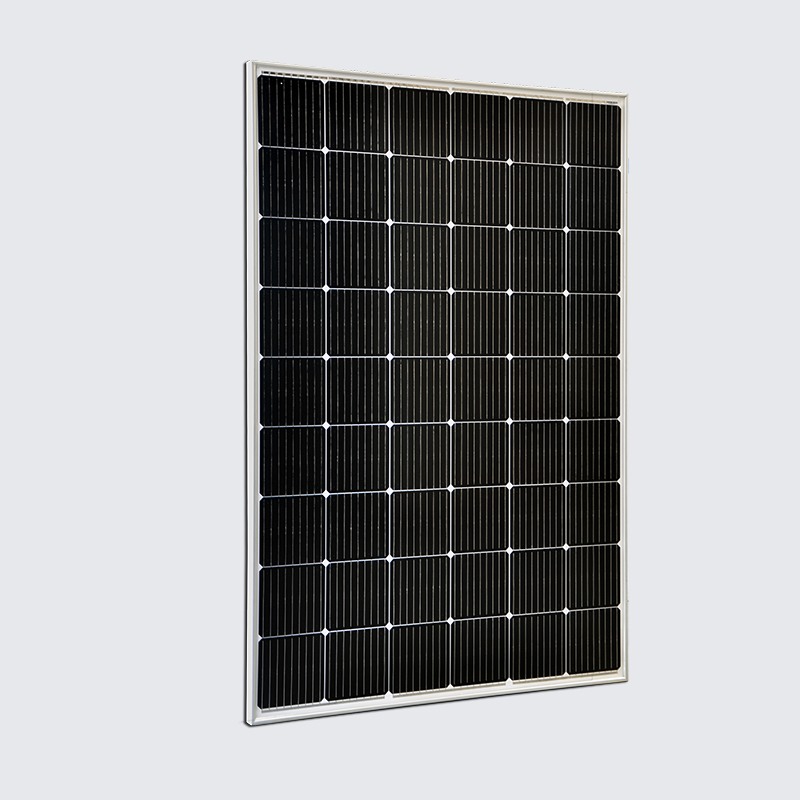

400W Monocrystalline Solar Panel
Description
Descriptions:
- High-efficiency solar cells to maintain solar panel efficiency at 20.99%.
- Lower LID attenuation.
- Excellent performance under weak light conditions.
- Excellent temperature coefficient characteristics.
- Premium materials ensure reliability.
- 100% EL testing ensures top quality.
- Extreme environment durability certified by TUV.
- Custom specifications available.
| Electrical Characteristics | |||
| Model No. | SW400M | SW410M | SW415M |
| Maximum power (Pmax) | 400W | 410W | 415W |
| Max-power voltage (Vmp) | 31.36V | 31.52V | 31.61V |
| Max-power current (Imp) | 12.76A | 13.01A | 13.13A |
| Open-circuit voltage (Voc) | 36.90V | 37.19V | 37.30V |
| Short-circuit current (Isc) | 13.41A | 13.79A | 13.91A |
| Module efficiency | 20.48% | 20.99% | 21.25% |
| Operating temperature | -40℃~+85℃ | ||
| Maximum system voltage | 1500Vdc | ||
| Maximum series fuse rating | 30A | ||
| Power tolerance | ±3% | ||
| *STC condition：1000 W/m²,1.5AM and 25℃ cell temperature. | |||
| Temperature Characteristics | |||
| NOCT | 46℃±2℃ | ||
| Temperature co-efficient of Pmax | -0.36%/℃ | ||
| Temperature co-efficient of Voc | -0.28%/℃ | ||
| Temperature co-efficient of Isc | 0.048%/℃ | ||
| Mechanical Characteristics | |||
| Mono power | 400W/410W/415W | ||
| Cell type | Mono 182*91mm | ||
| Cell arrangement | 108(6*18) | ||
| Dimensions | 1722*1134*35mm | ||
| Weight | 22.0kg | ||
| Front cover | 3.2mm tempered glass | ||
| Frame material | Anodized aluminium alloy | ||
| Junction box | IP67 rated | ||
| Output cables | 4mm²,length：（+）300mm/（-）300mm | ||
| Packing Ref. | |||
| Container | 40’HC | ||
| Pieces/pallet | 31 | ||
| Pieces/container | 806 | ||
Q1:Do you provide after-sales service?
A:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.
Q2:What solar solutions can you provide?
A:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,Agriculture-complementary Solar Power Station.
Q3:What is the lead time?
A:It will take about 5-20 days for production depending on the quantity.
Q4:How long is the warranty of your products?
A:5-year Warranty for Materials and Processing 25-year Warranty for Extra Linear Power Output.
Q5:Can I have sample before formal order?
A:Of course.
Q6:OEM is available?
A:Acceptable OEM Service
