Brand: SUNWORTH
Product Origin: China
Power Range: 50W-80W
Solar Cell: Polycrystalline
Certificate: CE/TUV/CB/IEC/RoHS
Warranty: 12-year product warranty.
25-year linear power output warranty.

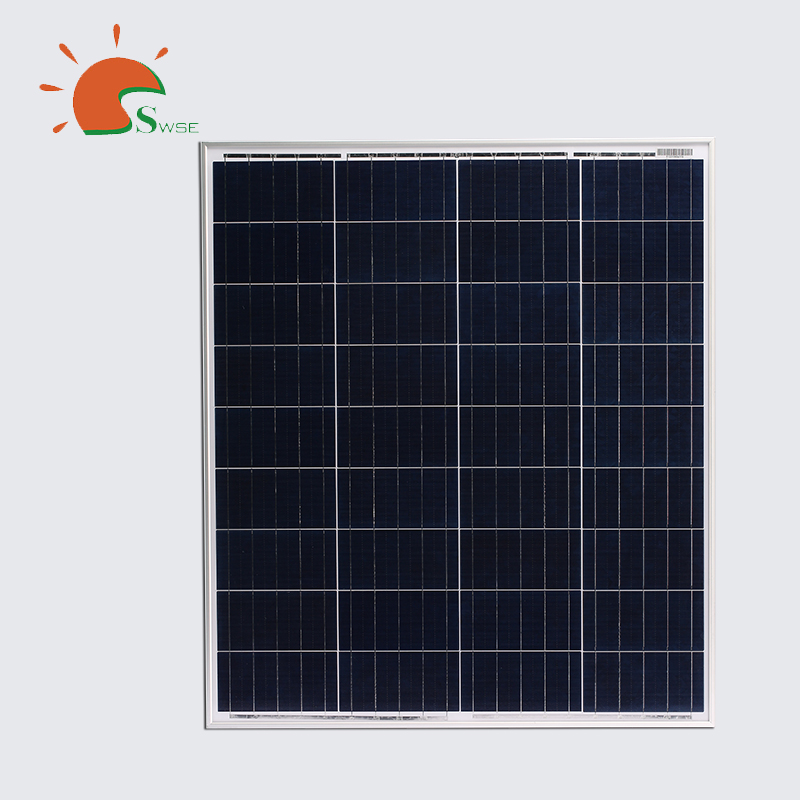

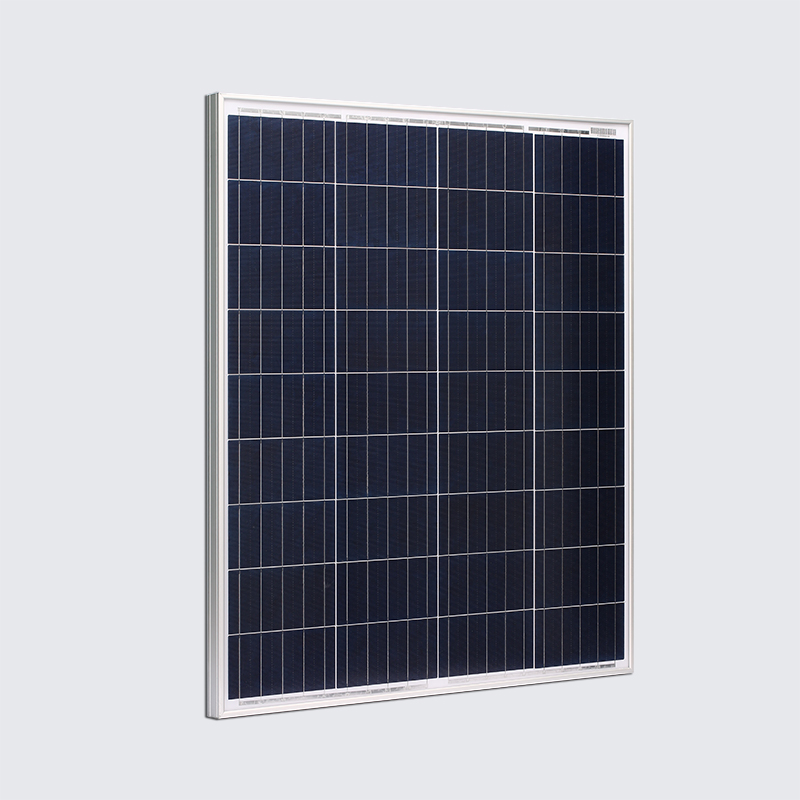

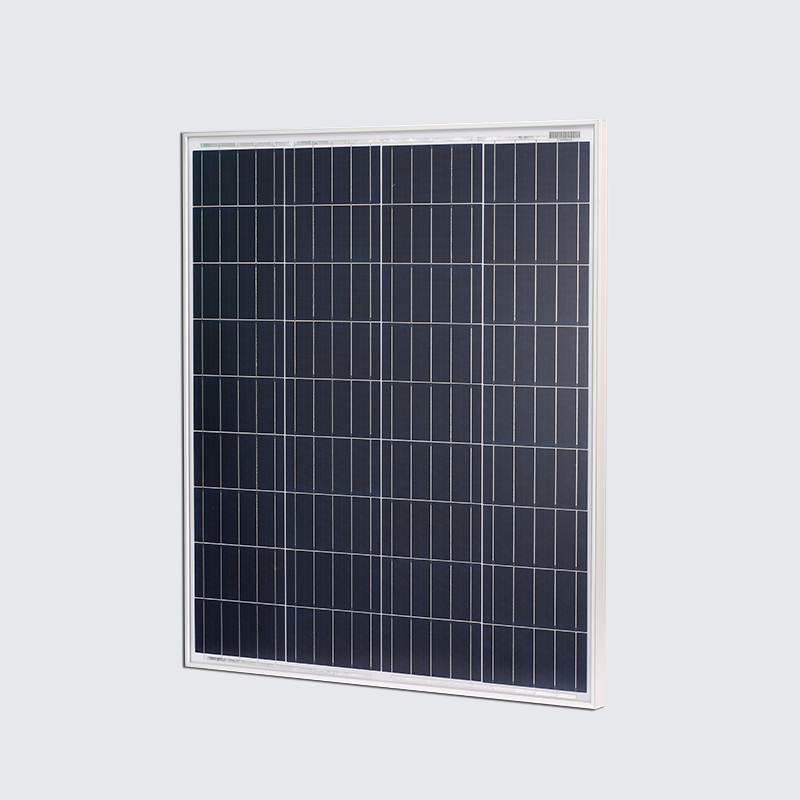

80W Polycrystalline Solar Panel
Description
Descriptions:
50W~80W Poly Solar PV Panels, conversion efficiency is slightly lower than Mono silicon solar cells and there is no obvious efficiency decline problem. In terms of raw material, the cost is much lower than Mono silicon cells, and the efficiency is higher than thin-film cells.
Advantages of Standard 36 Cells Customizable Poly Solar PV Panel 50~80W:
- 12 years old-brand solar PV module manufacturer
- Easy carrying and installing.
- Works for various off-grid applications.
| Electrical Parameters | |||
| Model No. | SW050P-36 | SW075P-36 | SW080P-36 |
| Max Power | 50W | 75W | 80W |
| Max Voltage | 18.19V | 18.28V | 18.78V |
| Max Current | 2.75A | 4.11A | 4.26A |
| Open-circuit Voltage | 22.53V | 22.50V | 22.93V |
| Short-circuit Current | 2.93A | 4.39A | 4.52A |
| Module Efficiency | 14.29% | 14.74% | 15.73% |
| Operating Temperature | -40℃~+85℃ | ||
| Max System Voltage | 300Vdc | ||
| Max Series Fuse Rating | 10A | ||
| Power Tolerance | ±3 | ||
| *STC condition：1000 W/m² | 1.5AM and 25℃ cell temperature | ||
| Temperature parameters | |||
| NMOT | 46℃±2℃ | ||
| Temperature Co-efficient of Pmax | -0.398%/℃ | ||
| Temperature Co-efficient of Voc | -0.340%/℃ | ||
| Temperature Co-efficient of Isc | 0.0576%/℃ | ||
| Mechanical Parameters | |||
| Cell size | 157*52.33mm | 157*78.5mm | 157*78.5mm |
| Cell amounts | 36(4*9) | 36(4*9) | 36(4*9) |
| Module Dimensions | 660*530*25mm | 665*765*30mm | 665*765*30mm |
| Weight | 2.4kg | 5.5kg | 5.5kg |
| Front Cover | 3.2mm tempered glass | ||
| Frame Material | Anodized aluminium alloy | ||

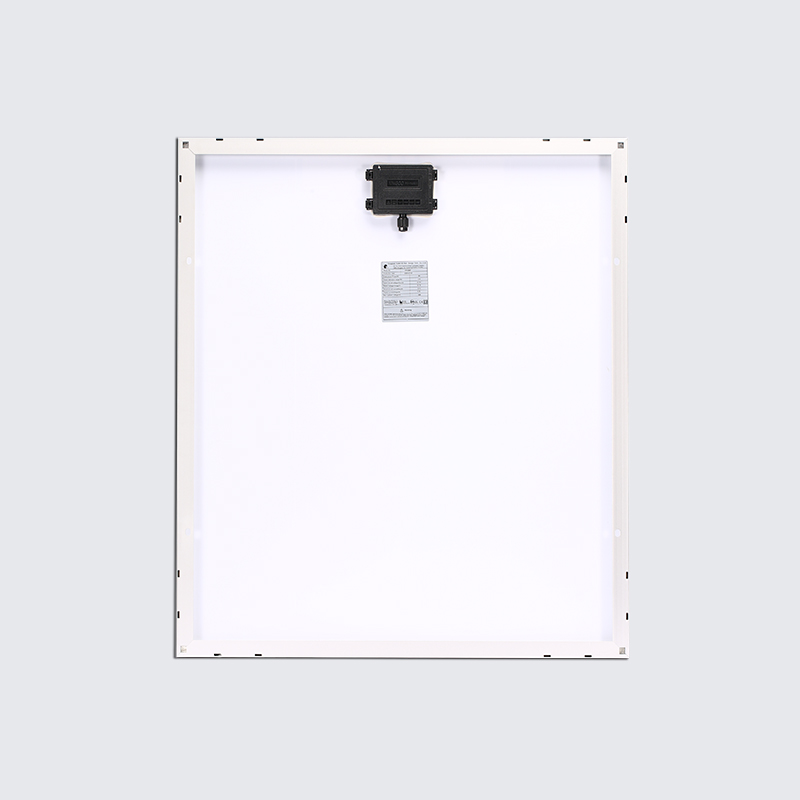

| Junction Box | IP65 rated | ||
Q1:Do you provide after-sales service?
A:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.
Q2:What solar solutions can you provide?
A:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,Agriculture-complementary Solar Power Station.
Q3:What is the lead time?
A:It will take about 5-20 days for production depending on the quantity.
Q4:How long is the warranty of your products?
A:5-year Warranty for Materials and Processing 25-year Warranty for Extra Linear Power Output.
Q5:Can I have sample before formal order?
A:Of course.
Q6:OEM is available?
A:Acceptable OEM Service
