Brand: SUNWORTH
Product Origin: China
Power Range: 50W-200W
Material: monocrystalline silicon+Glass+Aluminium alloy
Output:Type-C / USB / DC
Certificate: TuV / CB /CE / IEC

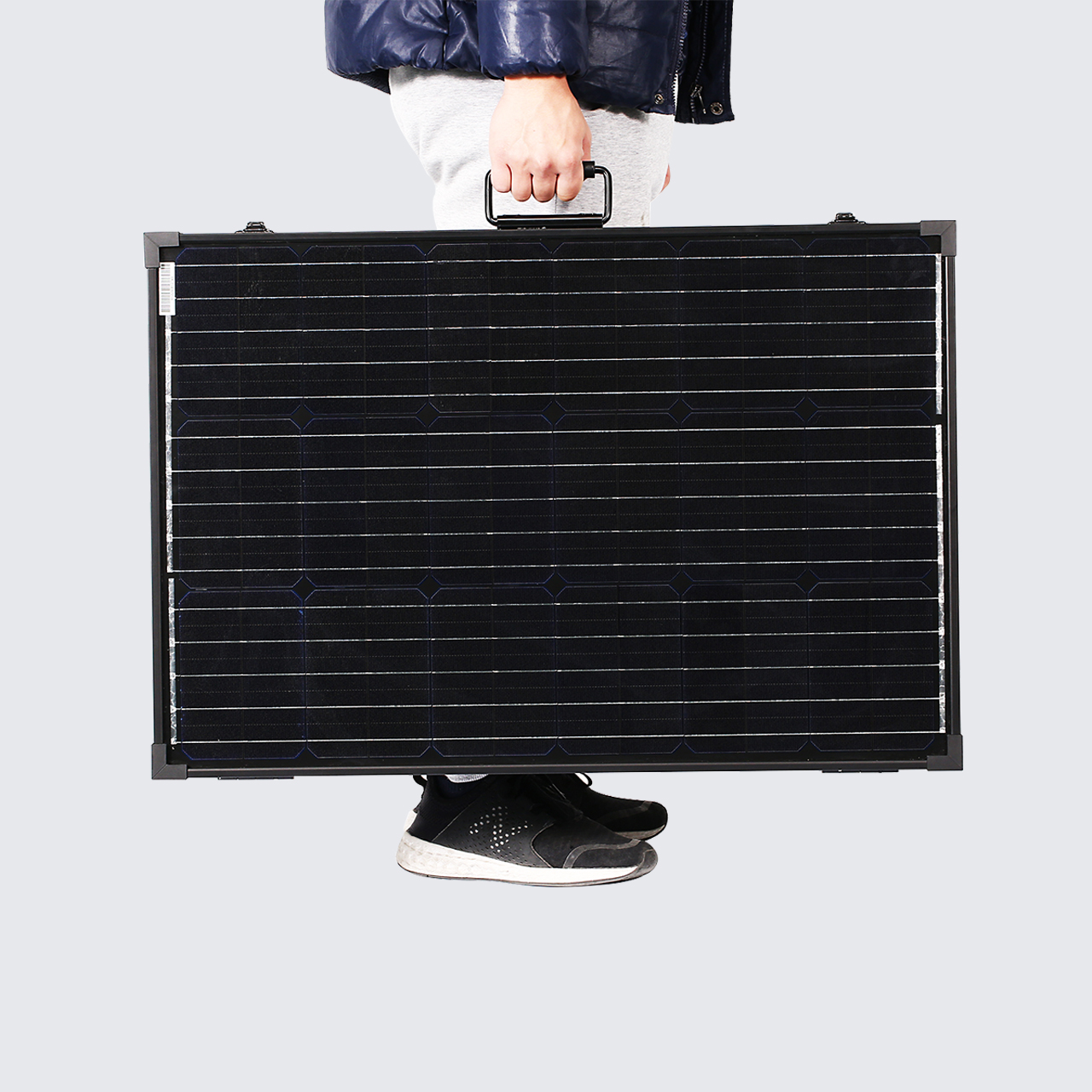

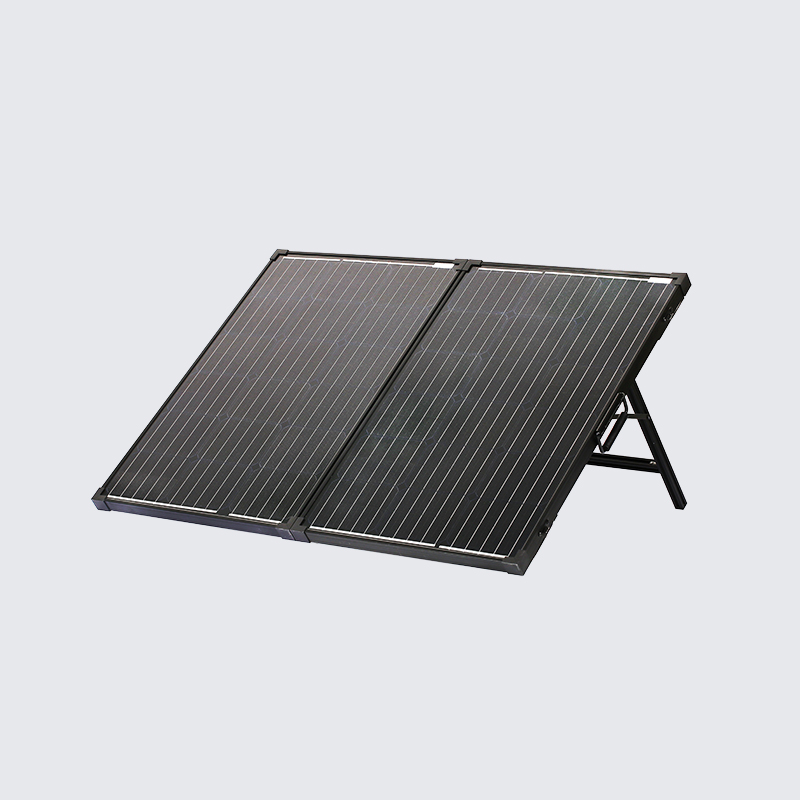

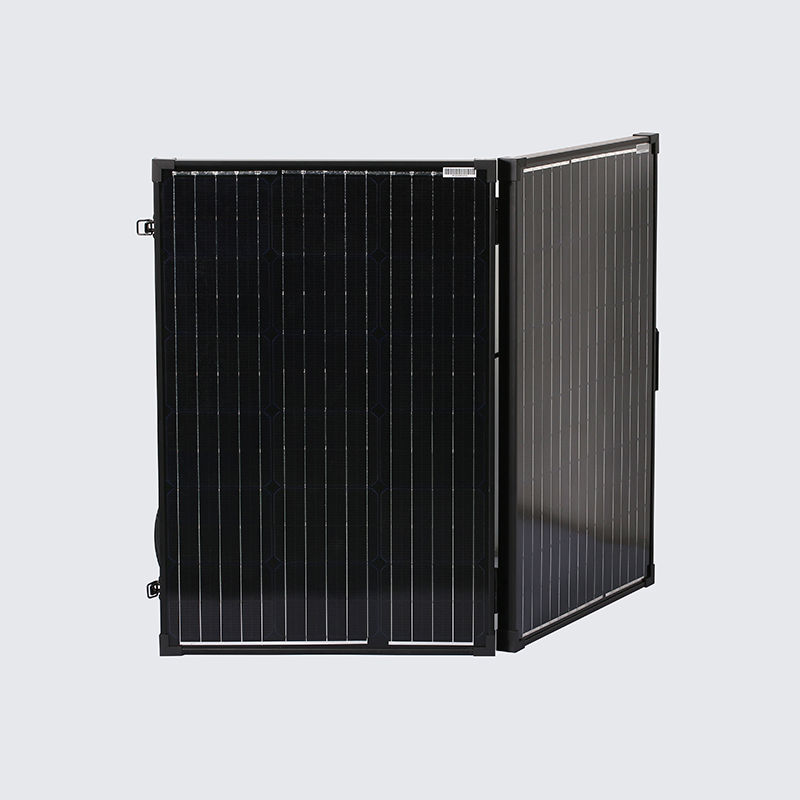

Foldable Solar Panel
Description
Descriptions:
Key Features of Sunworth Foldable Solar Panel
- Excellent performance in low-light environments.
- Alligator clips for ease of connection. Customized connectors acceptable.
- Adjustable, corrosion-resistant aluminum frame and stand, heavy duty handle and latches for longevity.
- Protection functions: Surge, Reverse polarity, Overload, Short circuit, etc.
Application of Sunworth Foldable Solar Panel
As it’s a portable type, could be taken everywhere very conveniently and work to generate power anywhere available with sunlight. Mostly could be used when people go out for camping, power lights, mobile phone, video, etc. Thus the foldable solar panels can be used for RV batteries. with plug in design. Besides, we have portable solar kits for home use.
| Electrical Characteristics | ||||
| Maximum Power (Pmax) | 50W | 100W | 150W | 200W |
| Max-power Voltage (Vmp) | 18.30V | 18.30V | 18.30V | 18.30V |
| Max-power Current (Imp) | 2.73A | 5.46A | 8.20A | 10.92A |
| Open-circuit Voltage (Voc) | 21.96V | 21.96V | 21.96V | 21.96V |
| Short-circuit Current (Isc) | 2.90A | 5.79A | 8.69A | 11.57A |
| Folded Dimension | 360*395*50mm | 535*565*50mm | 535*725*60mm | 705*725*60mm |
| Open Dimension | 720*395*5mm | 1070*565*25mm | 1070*725*30mm | 1410*725*30mm |
| Weight | 1.1kg | 3.0kg | 4.5kg | 6.5kg |
| Cell Efficiency | 22.00% | |||
| Output power tolerance | ±5% | |||
| Operating Temperature | -40℃~+85℃ | |||
| *STC condition：1000 W/m²,1.5AM and 25℃ cell temperature. | ||||
| Specifications | ||||
| Cell Type | MON 166*166mm | |||
| Front Cover | 3.2mm tempered glass | |||
| Frame Material | Anodized aluminium alloy | |||
| junction Box | IP65 rated | |||
| Cable and Connector: | 4mm2,Length 700mm+MC4 | |||
Q1:Do you provide after-sales service?
A:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.
Q2:What solar solutions can you provide?
A:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,Agriculture-complementary Solar Power Station.
Q3:What is the lead time?
A:It will take about 5-20 days for production depending on the quantity.
Q4:How long is the warranty of your products?
A:5-year Warranty for Materials and Processing 25-year Warranty for Extra Linear Power Output.
Q5:Can I have sample before formal order?
A:Of course.
Q6:OEM is available?
A:Acceptable OEM Service
