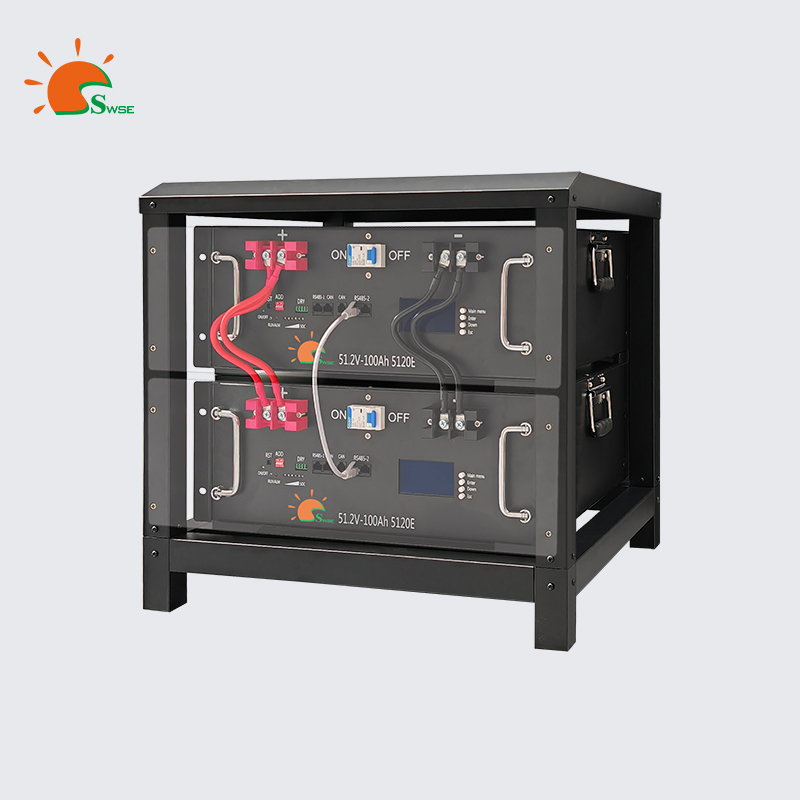

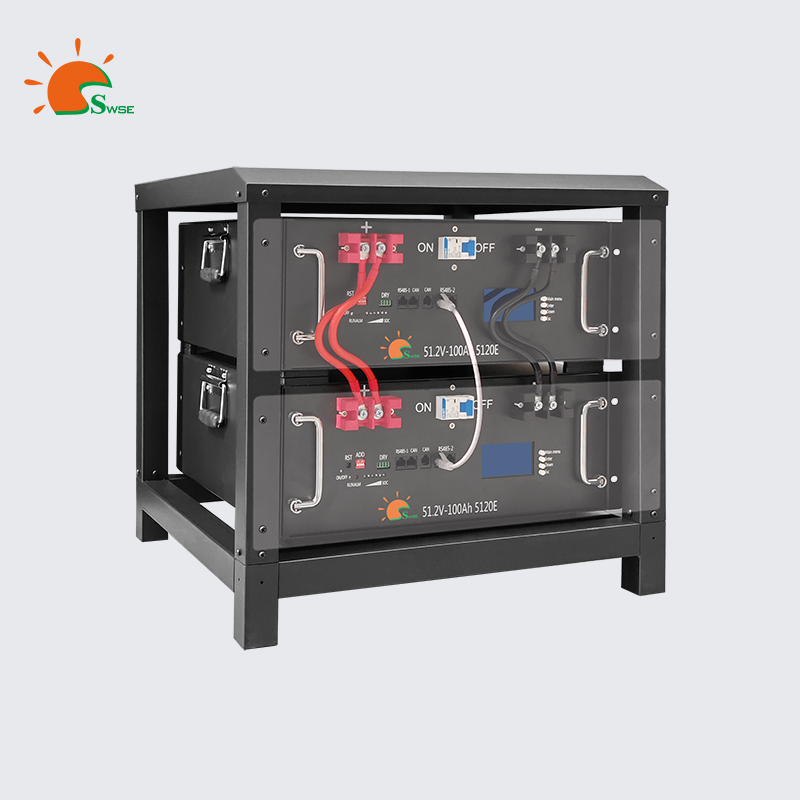

Solar Energy Storage System-10KWh

Description

Description

Descriptions:

Smart inverter built-in MPPT tracker
Enhanced AC/solar charger to 1C
Programmable supply priority for PV, battery or grid
User-adjustable battery charging current
Battery independent design
Monitoring APP (Andriod and iOS) for real-time status display and parameter control
Compatible to utility and generator
Lithium Iron Phosphate (LFP) cell

Specification

Model No.	SESS-10KWh
Nominal output power	5000W
Solar power input	8x500Wp
Battery capacity	10.24KWh
Battery type	LFP(LiFePO4)
Hybrid Inverter specification
Rated power	8000VA/8000W
Surge power	16000VA
Waveform	Pure sine wave
AC Voltage Regulation (Batt.Mode)	220VAC~240VAC
Inverter Efficiency(Peak)	93%
Transfer Time	15ms(For personal computers) / 20ms（For home appliances)
AC input voltage	230Vac
Frequency Range	50Hz / 60Hz (Auto sensing)
Maximum PV Array Open Circuit Voltage	500Vdc
PV Array MPPT Voltage Range	90-450Vdc
Maximum PV Array Power	8000Wp(4000Wp x 2)
Maximum Solar Charge Current	150A
Maximum AC Charge Current	120A
Dimension(mm)	158x504x531
Net Weight (KGS)	20
Battery Module
Nomal voltage	51.2V
Capacity	100Ah
Full charge voltage	58.4V
Full discharge voltage	43.2V
Charge current	20A(0.2C)
Max. charging current	100A
Max. discharging current	100A
Protection	BMS,Breaker
Dimension(mm)	482550178
Net Weight (KGS)	45
Number of modules	x 2
Other
Relative humidity	5% to 95%
Operating temperature	–10℃ to +50℃
Storage temperature	–15℃ to +60℃

Document

Q1: What devices can the system power?
A: The system can charge the DC device under 120W for DC port and AC device under inverter power
(500W, 800W or 1000W, depends on the model No.), please refer to the specifications for details.

Q2: Do you make customized products?
A: We warmly welcome OEM/ODM orders.

Q3: What is the minimum number of order for this product?
A: Normally MOQ 100 pcs.

Q4: Can I get a sample before order?
A: After price confirmation, you can require for samples to check our product’s quality.
