Solar Energy Storage System 15KWh

Home|Solar Power Storage System|Lithium Battery Series|Solar Energy Storage System 15KWh

Solar Energy Storage System 15KWh

Brand: SUNWORTH

Product Origin: China

Product Name: Solar Energy Storage System

Power Source: Solar Panel/AC Adaptor

Battery Capacity: 15KWh

Battery Type: LiFePO4

Controller Type: MPPT

Inverter Type: Modified Sine Wave

Output: DC,USB,AC

Service: ODM/OEM

Warranty: 2 years

Description

Descriptions:

  • Smart inverter with built-in MPPT tracker
  • Enhanced AC/solar charger to 1C
  • Programmable supply priority for PV, battery, or grid
  • User-adjustable battery charging current
  • 15kW solar system with independent battery storage
  • Mobile app (Android/iOS) for real-time status and parameter control
  • This solar power storage systemis compatible with utility and generator
  • Lithium Iron Phosphate (LFP) cell

Applications:

Solar Power Battery Systems can be used in:

  • Renewable Energy Systems
  • City Grid (On/Off)
  • Community and Family

15KW Solar System With Battery Storage For Backup and UPS:

  • Telecommunication Base Stations
  • Cable TV (CATV) Systems
  • Computer Server Centers
  • Medical Instruments
  • Military Equipment

Other applications of solar power storage systems: Mining Lights, Torches, LED Lights, Emergency Lights, Golf Carts Batteries, Boat Marine Yachts, LED Backup Systems, etc.



Model No.  SESS-15KWh
Nominal output power 10000W
Solar power input 12x500Wp
Battery capacity 15.36KWh
Battery type LFP(LiFePO4)
Hybrid Inverter specification
Rated power 10000VA/10000W
Surge power 20000VA
Waveform Pure sine wave
AC Voltage Regulation (Batt.Mode)  220VAC~240VAC
Inverter Efficiency(Peak) 93%
Transfer Time 15ms(For personal computers) / 20ms(For home appliances)
AC input voltage 230Vac
Frequency Range 50Hz / 60Hz (Auto sensing)
Maximum PV Array Open Circuit Voltage 500Vdc
PV Array MPPT Voltage Range 90-450Vdc
Maximum PV Array Power 10000Wp(5000Wp x2)
Maximum Solar Charge Current 150A
Maximum AC Charge Current  150A
Dimension(mm) 158x504x531
Net Weight (KGS) 20

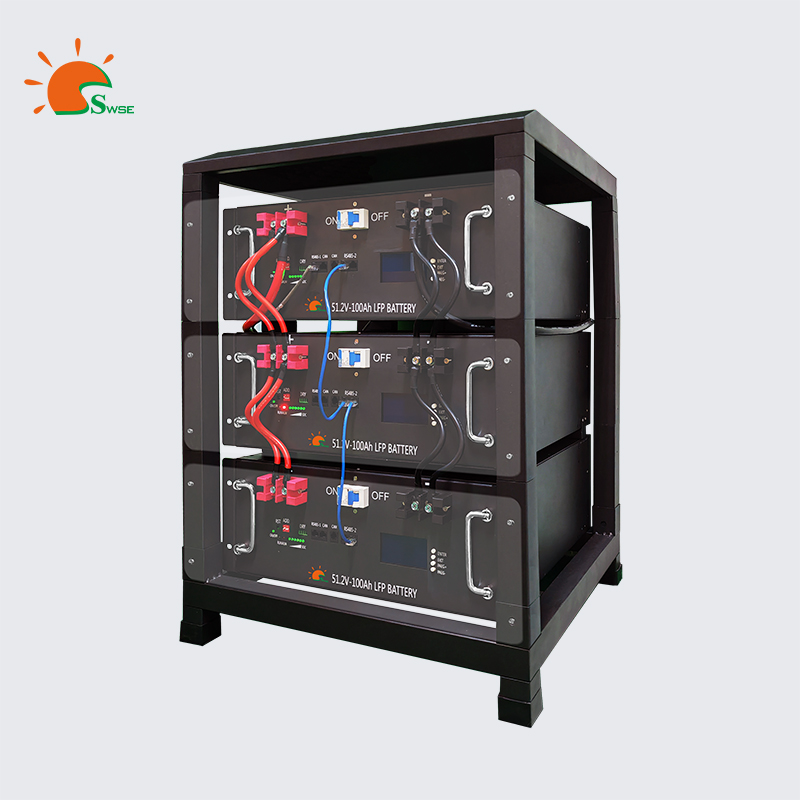

Battery Module
Nomal voltage 51.2V
Capacity 100Ah
Full charge voltage 58.4V
Full discharge voltage 43.2V
Charge current 20A(0.2C)
Max. charging current 100A
Max. discharging current 100A
Protection BMS,Breaker
Dimension(mm) 482*550*178
Net Weight (KGS) 45
Number of modules x 3
Other
Relative humidity  5% to 95%
Operating temperature –10℃ to +50℃
Storage temperature –15℃ to +60℃



Q1: What devices can the system power?
A: The system can charge the DC device under 120W for DC port and AC device under inverter power
(500W, 800W or 1000W, depends on the model No.), please refer to the specifications for details.

Q2: Do you make customized products?
A: We warmly welcome OEM/ODM orders.

Q3: What is the minimum number of order for this product?
A: Normally MOQ 100 pcs.

Q4: Can I get a sample before order?
A: After price confirmation, you can require for samples to check our product’s quality.

Q5: How Long is the Lifespan of Solar Power Battery Systems?

A: LFP(LiFePO4) batteries can maximize the lifespan of solar power battery systems and come with a 2-year warranty.
