SPS with Lead-acid Battery Series 6KW~10KW

Home|Solar Power Storage System|Lead-acid Battery Series|SPS with Lead-acid Battery Series 6KW~10KW

SPS with Lead-acid Battery Series 6KW~10KW


Product Origin: China

Product Name: Off-grid Solar Power System

Power Sourse: Solar Panel/AC Adaptor

Battery Type: Lead-acid

Controller Type: MPPT

Inverter Type: Pure Sine Wave

Output: USB,AC

Service: ODM/OEM

Certificate: CE

Warranty: 2 years

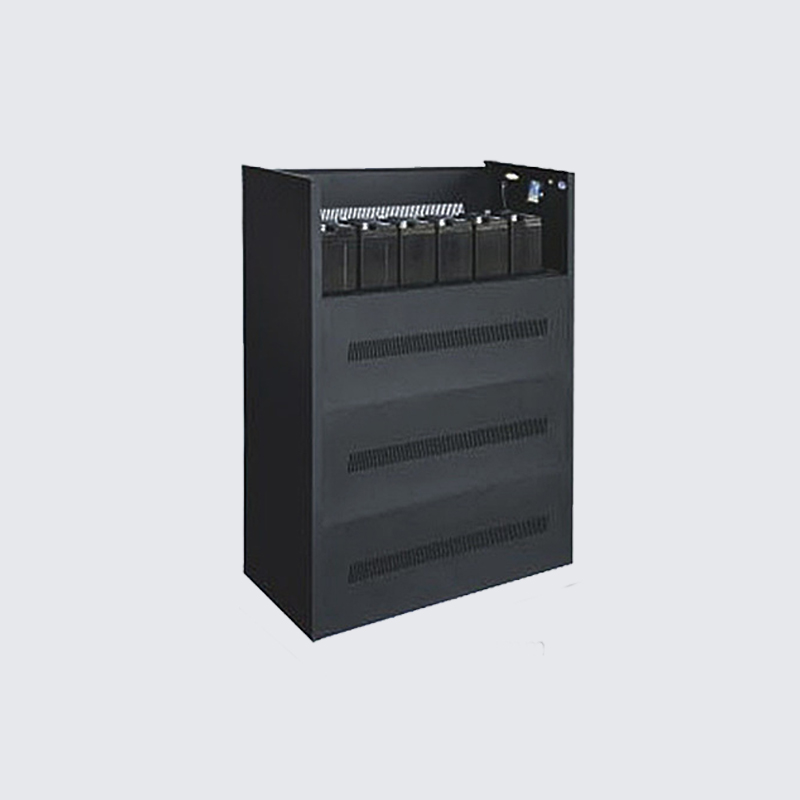

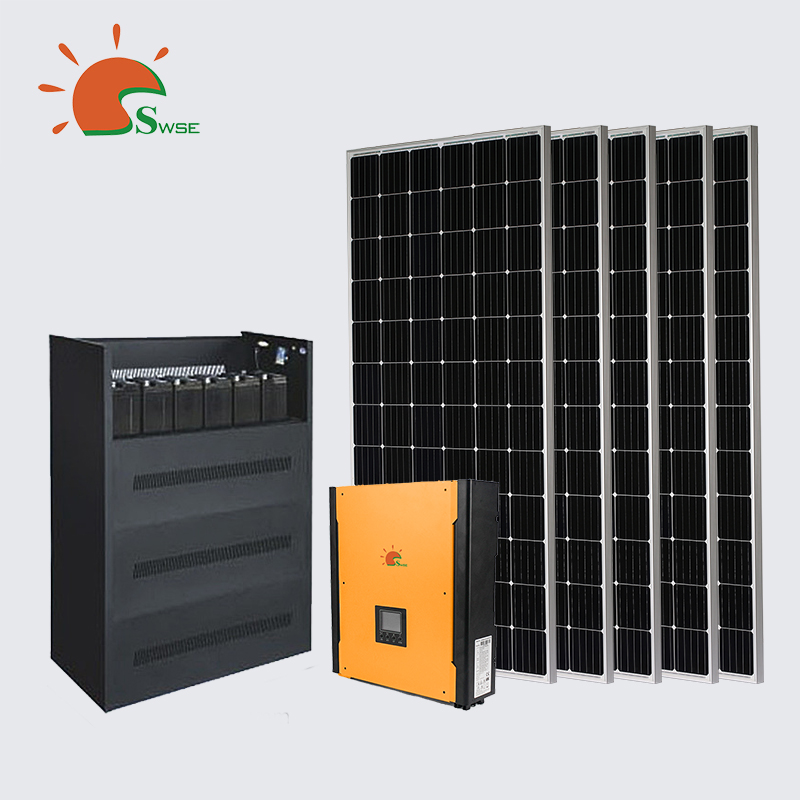

Off-grid 6~10KW Solar Power System with Lead-acid Battery can provide electricity to high-power home appliances, like the refrigerator, air-conditioner, washing machine, printer, fax and so on. Battery cabinet of the system built-in multiple protection systems, surge, reverse polarity, overload, short current etc, the system’  normal operation can be guaranteed.


Advantage of Off Grid 6-10KW Solar Power System with Lead-acid Battery

  • Solar energy replaces other non-renewable resources.
  • This storage energy system can provide electricity for most household appliances.
  • Rich experience of PV project and solar product production.
  • Pass many demanding international tests, like TUV, IEC, CE.
  • table delivery time, reliable quality and competitive price.


Technical Data
Solar Panel Power 12x320Wp 16x320Wp 20x320Wp
Lead-acid /GEL Battery 14.4KWh 17.28KWh 19.2KWh
Rated Power 6KVA/6KW 8KVA/8KW 10KVA/10KW
Surge Rating 18KVA 24KVA 30KVA
Max. Solar Charge  MPPT 80A MPPT 120A MPPT 120A
Max.AC Charge 60A 70A 80A
Input Voltage AC 220V/230V 50Hz
Output Voltage AC 220V/230V 50Hz
Protection Surge, Reverse polarity, Overload, Short circuit ,etc.
Operating Temperature Discharge: -20℃ ~50℃,Charge: 0℃~50℃
IP Rating IP22
Inverter Size 650*380*225mm
Battery Cabinet Ref.  80×65×85 cm 90×90×80 cm 90×90×80 cm
Weight(Ref.) 675Kgs 970Kgs 1315Kgs


Q1: What devices can Squirrel15 power?
A: Squirrel15 can charge the DC device under 60W for DC port.

Q2: Do you make customized products?
A: We warmly welcome OEM/ODM orders.

Q3: What is the minimum number of order for this product?
A: Normally MOQ 100 pcs.

Q4: Can I get a sample before order?
A: After price confirmation, you can require for samples to check our product’s quality.

Q5: What is your term of delivery?
A: We accept FOB Shenzhen or CIF. It’s up to you.
