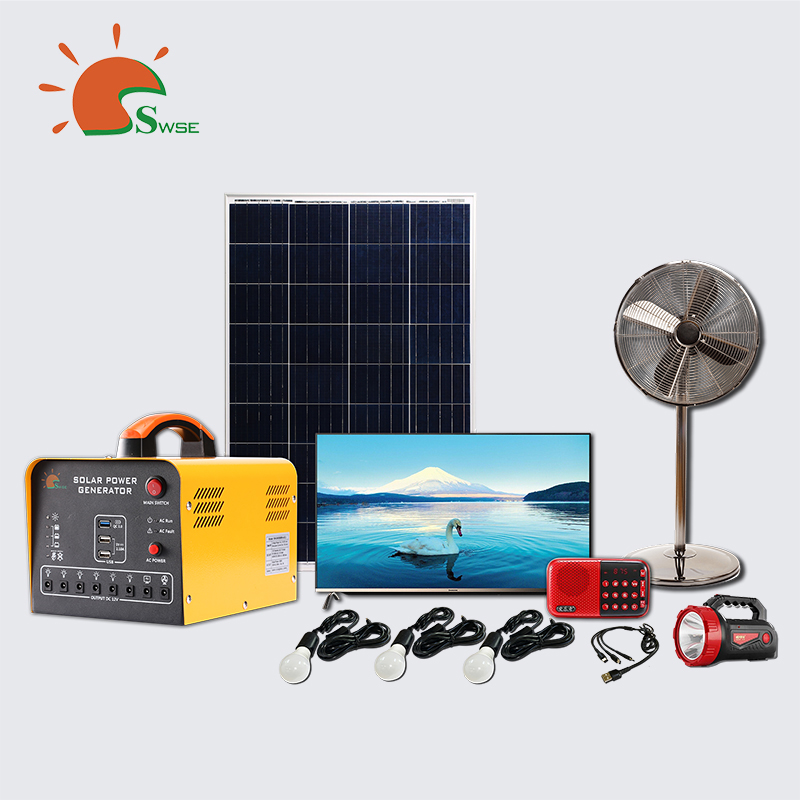

SHS with Lithium Battery DC&AC Series 60W~100W

Home|Solar Power Storage System|Lithium Battery Series|SHS with Lithium Battery DC&AC Series 60W~100W

SHS with Lithium Battery DC&AC Series 60W~100W


Product Origin: China

Product Name: Solar Home System

Power Source: Solar Panel/AC Adaptor

Battery Type: LiFePO4

Controller Type: MPPT

Inverter Type: Modified Sine Wave

Output: DC,USB,AC

Service: ODM/OEM

Certificate: CE

Warranty: 2 years

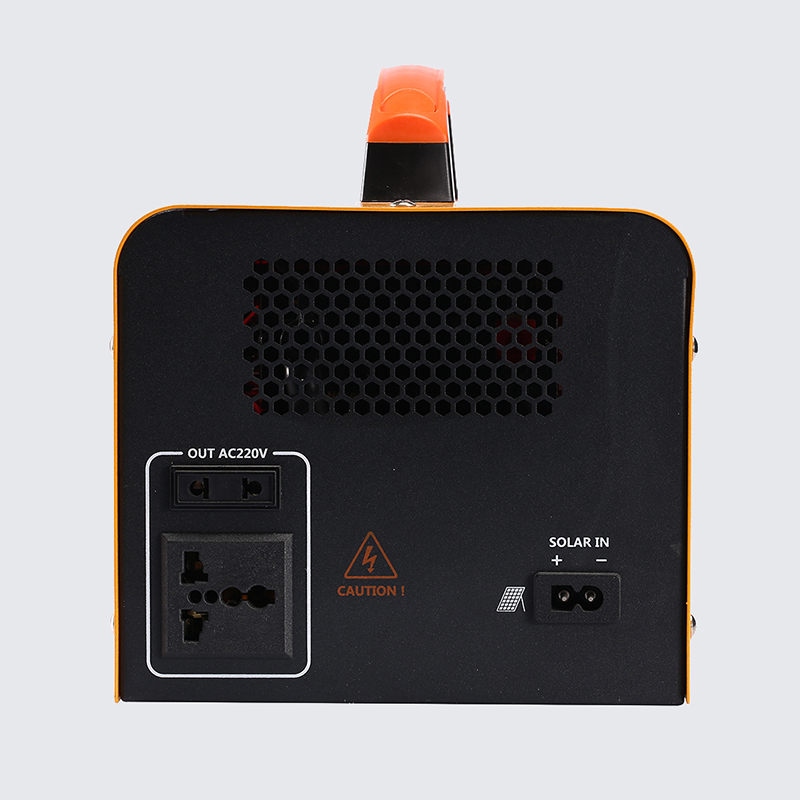

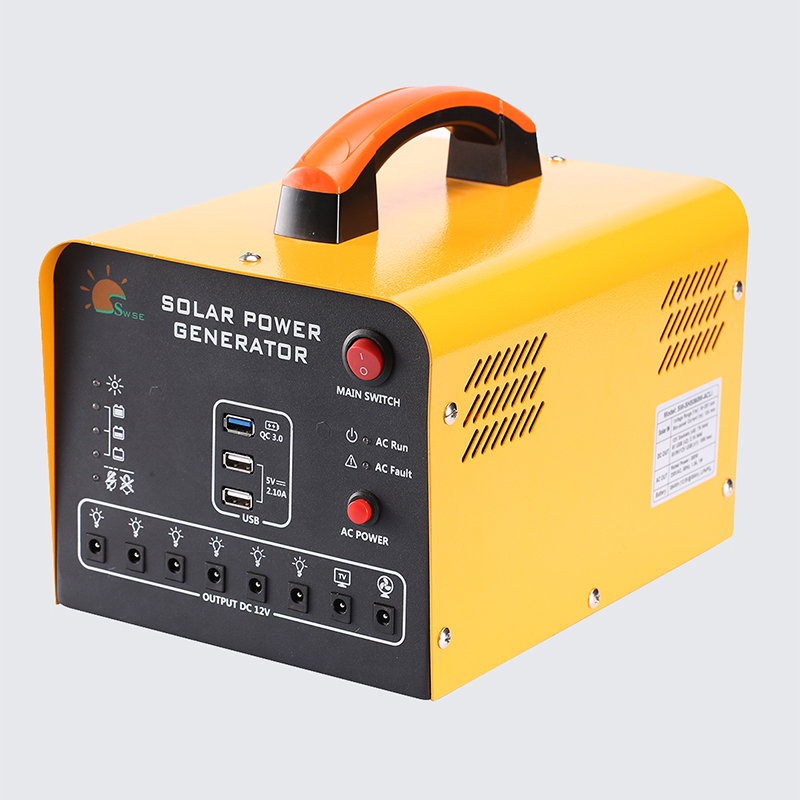

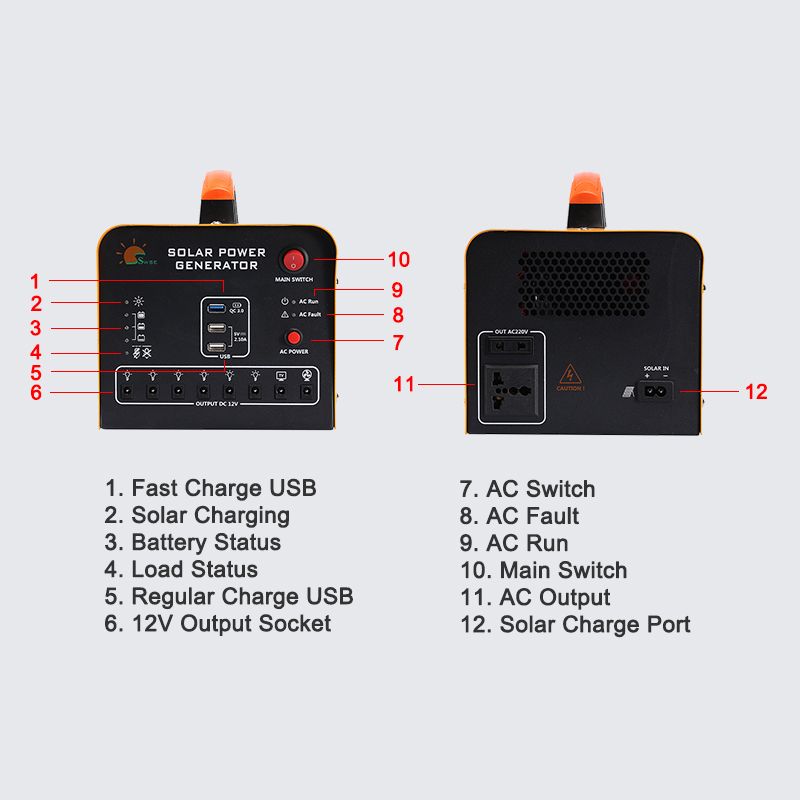

Sunworth 60W-100W Off-grid Solar Home System with Lithium Battery DC&AC Series has both AC output and DC output sockets. There are two switches on the integrated power box, the main switch and the AC switch. Turn on the main switch, the system starts working. The solar panel will charge the battery and DC load can supply power. When turning on the AC power switch, the AC power supply become available.


Advantage of Sunworth 60W-100W Off-grid Solar Home System with Lithium Battery DC/AC Series

  • Lithium battery has a higher rated voltage and high-power bearing capacity.
  • AC and DC two way output.
  • The electricity generated by the system can be used daily or as an emergency power reservation.
  • Simple structure and convenient installation.
  • Personalized custom solutions are available.
Technical Data
Model No. SW-SHS 60W-ACLi SW-SHS 80W-ACLi SW-SHS 100W-ACLi
Solar Panel Power 60Wp 80Wp 100Wp
Lithium Battery 12V30Ah 12V36Ah 12V48Ah
Controller 10A 10A 10A
Inverter 300W 300W 500W
LED Bulb 5W*6 PCS 5W*6 PCS 5W*6 PCS
Max. Charge Current 10A 10A 10A
Output Voltage DC12, DC5V, AC220
DC Outlet Socket DC12V Socket *8Pcs,1x Flash Charge USB ,2x5V USB(2.1A)
Protection Surge, Reverse polarity, Overload, Short circuit ,etc.
Operating Temperature Discharge: -20℃ ~50℃,Charge: 0℃~50℃
IP Rating IP22
Power Box (L*W*H)  19*27*23cm 19*30*23 cm 19*27*30 cm
Weight 13Kgs 24Kgs 31Kgs


Q1: What devices can Squirrel15 power?
A: Squirrel15 can charge the DC device under 60W for DC port.

Q2: Do you make customized products?
A: We warmly welcome OEM/ODM orders.

Q3: What is the minimum number of order for this product?
A: Normally MOQ 100 pcs.

Q4: Can I get a sample before order?
A: After price confirmation, you can require for samples to check our product’s quality.

Q5: What is your term of delivery?
A: We accept FOB Shenzhen or CIF. It’s up to you.
